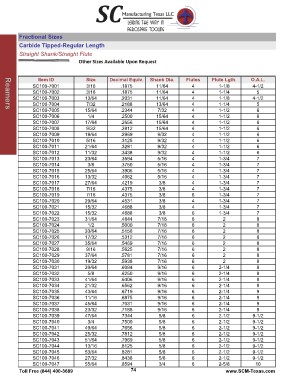

Page 76 - SCMT 2015 FULL Catalog

Fractional Sizes
Carbide Tipped-Regular Length
Straight Shank/Straight Flute

Reamers Item ID Size Decimal Equiv. Shank Dia. Flutes Flute Lgth. O.A.L.

SC100-7001 3/16 .1875 11/64 4 1-1/8 4-1/2
SC100-7002 3/16 .1875 11/64 4 1-1/4 5
SC100-7003 13/64 .2031 11/64 4 1-1/8
SC100-7004 7/32 .2188 13/64 4 1-1/4 4-1/2
SC100-7005 15/64 .2344 7/32 4 1-1/2 5
SC100-7006 1/4 .2500 15/64 4 1-1/2 6
SC100-7007 17/64 .2656 15/64 4 1-1/2 6
SC100-7008 9/32 .2812 15/64 4 1-1/2 6
SC100-7009 19/64 .2969 9/32 4 1-1/2 6
SC100-7010 5/16 .3125 9/32 4 1-1/2 6
SC100-7011 21/64 .3281 9/32 4 1-1/2 6
SC100-7012 11/32 .3438 9/32 4 1-1/2 6
SC100-7013 23/64 .3594 5/16 4 1-3/4 6
SC100-7014 3/8 .3750 5/16 4 1-3/4 7
SC100-7015 25/64 .3906 5/16 4 1-3/4 7
SC100-7016 13/32 .4062 5/16 4 1-3/4 7
SC100-7017 27/64 .4219 4 1-3/4 7
SC100-7018 7/16 .4375 3/8 4 1-3/4 7
SC100-7019 7/16 .4375 3/8 6 1-3/4 7
SC100-7020 29/64 .4531 3/8 4 1-3/4 7
SC100-7021 15/32 .4688 3/8 4 1-3/4 7
SC100-7022 15/32 .4688 3/8 6 1-3/4 7
SC100-7023 31/64 .4844 3/8 6 7
SC100-7024 1/2 .5000 7/16 6 2 8
SC100-7025 33/64 .5156 7/16 6 2 8
SC100-7026 17/32 .5312 7/16 6 2 8
SC100-7027 35/64 .5469 7/16 6 2 8
SC100-7028 9/16 .5625 7/16 6 2 8
SC100-7029 37/64 .5781 7/16 6 2 8
SC100-7030 19/32 .5938 7/16 6 2 8
SC100-7031 39/64 .6094 7/16 6 2 8
SC100-7032 5/8 .6250 9/16 6 2-1/4 9
SC100-7033 41/64 .6406 9/16 6 2-1/4 9
SC100-7034 21/32 .6562 9/16 6 2-1/4 9
SC100-7035 43/64 .6719 9/16 6 2-1/4 9
SC100-7036 11/16 .6875 9/16 6 2-1/4 9
SC100-7037 45/64 .7031 9/16 6 2-1/4 9
SC100-7038 23/32 .7188 9/16 6 2-1/4 9
SC100-7039 47/64 .7344 9/16 6 2-1/4 9
SC100-7040 3/4 .7500 5/8 6 2-1/2
SC100-7041 49/64 .7656 5/8 6 2-1/2 9-1/2
SC100-7042 25/32 .7812 5/8 6 2-1/2 9-1/2
SC100-7043 51/64 .7969 5/8 6 2-1/2 9-1/2
SC100-7044 13/16 .8125 5/8 6 2-1/2 9-1/2
SC100-7045 53/64 .8281 5/8 6 2-1/2 9-1/2
SC100-7046 27/32 .8438 5/8 6 2-1/2 9-1/2
SC100-7047 55/64 .8594 5/8 6 2-1/2 9-1/2
3/4 2-5/8 9-1/2
