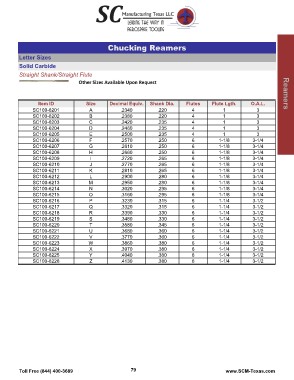

Page 81 - SCMT 2015 FULL Catalog

Reamers Chucking Reamers

Letter Sizes Reamers
Solid Carbide
Straight Shank/Straight Flute

Item ID Size Decimal Equiv. Shank Dia. Flutes Flute Lgth. O.A.L.

SC100-6201 A .2340 .220 4 1 3
SC100-6202 B .2380 .220 4 1 3
SC100-6203 C .2420 .235 4 1 3
SC100-6204 D .2460 .235 4 1 3
SC100-6205 E .2500 .235 4 1 3
SC100-6206 F .2570 .250 6 1-1/8 3-1/4
SC100-6207 G .2610 .250 6 1-1/8 3-1/4
SC100-6208 H .2660 .250 6 1-1/8 3-1/4
SC100-6209 I .2720 .265 6 1-1/8 3-1/4
SC100-6210 J .2770 .265 6 1-1/8 3-1/4
SC100-6211 K .2810 .265 6 1-1/8 3-1/4
SC100-6212 L .2900 .280 6 1-1/8 3-1/4
SC100-6213 M .2950 .280 6 1-1/8 3-1/4
SC100-6214 N .3020 .295 6 1-1/8 3-1/4
SC100-6215 O .3160 .295 6 1-1/8 3-1/4
SC100-6216 P .3230 .315 6 1-1/4 3-1/2
SC100-6217 Q .3320 .315 6 1-1/4 3-1/2
SC100-6218 R .3390 .330 6 1-1/4 3-1/2
SC100-6219 S .3480 .330 6 1-1/4 3-1/2
SC100-6220 T .3580 .345 6 1-1/4 3-1/2
SC100-6221 U .3680 .360 6 1-1/4 3-1/2
SC100-6222 V .3770 .360 6 1-1/4 3-1/2
SC100-6223 W .3860 .380 6 1-1/4 3-1/2
SC100-6224 X .3970 .380 6 1-1/4 3-1/2
SC100-6225 Y .4040 .380 6 1-1/4 3-1/2
SC100-6226 Z .4130 .380 6 1-1/4 3-1/2
