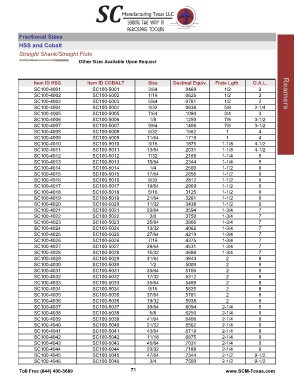

Page 73 - SCMT 2015 FULL Catalog
P. 73
Fractional Sizes
HSS and Cobalt
Straight Shank/Straight Flute
Item ID HSS Item ID COBALT Size Decimal Equiv. Flute Lgth. O.A.L. Reamers
SC100-4001 SC100-5001 3/64 .0469 1/2 2
SC100-4002 SC100-5002 1/16 .0625 1/2 2
SC100-4003 SC100-5003 5/64 .0781 1/2 2
SC100-4004 SC100-5004 3/32 .0938 5/8 2-1/4
SC100-4005 SC100-5005 7/64 .1094 3/4 3
SC100-4006 SC100-5006 1/8 .1250 7/8 3-1/2
SC100-4007 SC100-5007 9/64 .1406 7/8 3-1/2
SC100-4008 SC100-5008 5/32 .1562 1 4
SC100-4009 SC100-5009 11/64 .1719 1 4
SC100-4010 SC100-5010 3/16 .1875 1-1/8 4-1/2
SC100-4011 SC100-5011 13/64 .2031 1-1/8 4-1/2
SC100-4012 SC100-5012 7/32 .2188 1-1/4 5
SC100-4013 SC100-5013 15/64 .2344 1-1/4 5
SC100-4014 SC100-5014 1/4 .2500 1-1/2 6
SC100-4015 SC100-5015 17/64 .2656 1-1/2 6
SC100-4016 SC100-5016 9/32 .2812 1-1/2 6
SC100-4017 SC100-5017 19/64 .2969 1-1/2 6
SC100-4018 SC100-5018 5/16 .3125 1-1/2 6
SC100-4019 SC100-5019 21/64 .3281 1-1/2 6
SC100-4020 SC100-5020 11/32 .3438 1-1/2 6
SC100-4021 SC100-5021 23/64 .3594 1-3/4 7
SC100-4022 SC100-5022 3/8 .3750 1-3/4 7
SC100-4023 SC100-5023 25/64 .3906 1-3/4 7
SC100-4024 SC100-5024 13/32 .4062 1-3/4 7
SC100-4025 SC100-5025 27/64 .4219 1-3/4 7
SC100-4026 SC100-5026 7/16 .4375 1-3/4 7
SC100-4027 SC100-5027 29/64 .4531 1-3/4 7
SC100-4028 SC100-5028 15/32 .4688 1-3/4 7
SC100-4029 SC100-5029 31/64 .4844 2 8
SC100-4030 SC100-5030 1/2 .5000 2 8
SC100-4031 SC100-5031 33/64 .5156 2 8
SC100-4032 SC100-5032 17/32 .5312 2 8
SC100-4033 SC100-5033 35/64 .5469 2 8
SC100-4034 SC100-5034 9/16 .5625 2 8
SC100-4035 SC100-5035 37/64 .5781 2 8
SC100-4036 SC100-5036 19/32 .5938 2 8
SC100-4037 SC100-5037 39/64 .6094 2-1/4 9
SC100-4038 SC100-5038 5/8 .6250 2-1/4 9
SC100-4039 SC100-5039 41/64 .6406 2-1/4 9
SC100-4040 SC100-5040 21/32 .6562 2-1/4 9
SC100-4041 SC100-5041 43/64 .6719 2-1/4 9
SC100-4042 SC100-5042 11/16 .6875 2-1/4 9
SC100-4043 SC100-5043 45/64 .7031 2-1/4 9
SC100-4044 SC100-5044 23/32 .7188 2-1/4 9
SC100-4045 SC100-5045 47/64 .7344 2-1/2 9-1/2
SC100-4046 SC100-5046 3/4 .7500 2-1/2 9-1/2
Toll Free (844) 400-3689 71 www.SCM-Texas.com
