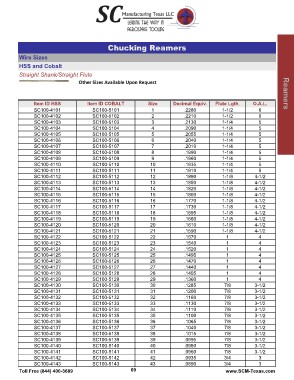

Page 71 - SCMT 2015 FULL Catalog

Reamers Chucking Reamers

Wire Sizes Reamers
HSS and Cobalt
Straight Shank/Straight Flute

Item ID HSS Item ID COBALT Size Decimal Equiv. Flute Lgth. O.A.L.

SC100-4101 SC100-5101 1 .2280 1-1/2 6
SC100-4102 SC100-5102 2 .2210 1-1/2 6
SC100-4103 SC100-5103 3 .2130 1-1/4 5
SC100-4104 SC100-5104 4 .2090 1-1/4 5
SC100-4105 SC100-5105 5 .2055 1-1/4 5
SC100-4106 SC100-5106 6 .2040 1-1/4 5
SC100-4107 SC100-5107 7 .2010 1-1/4 5
SC100-4108 SC100-5108 8 .1990 1-1/4 5
SC100-4109 SC100-5109 9 .1960 1-1/4 5
SC100-4110 SC100-5110 10 .1935 1-1/4 5
SC100-4111 SC100-5111 11 .1910 1-1/4 5
SC100-4112 SC100-5112 12 .1890 1-1/8 4-1/2
SC100-4113 SC100-5113 13 .1850 1-1/8 4-1/2
SC100-4114 SC100-5114 14 .1820 1-1/8 4-1/2
SC100-4115 SC100-5115 15 .1800 1-1/8 4-1/2
SC100-4116 SC100-5116 16 .1770 1-1/8 4-1/2
SC100-4117 SC100-5117 17 .1730 1-1/8 4-1/2
SC100-4118 SC100-5118 18 .1695 1-1/8 4-1/2
SC100-4119 SC100-5119 19 .1660 1-1/8 4-1/2
SC100-4120 SC100-5120 20 .1610 1-1/8 4-1/2
SC100-4121 SC100-5121 21 .1590 1-1/8 4-1/2
SC100-4122 SC100-5122 22 .1570 4
SC100-4123 SC100-5123 23 .1540 1 4
SC100-4124 SC100-5124 24 .1520 1 4
SC100-4125 SC100-5125 25 .1495 1 4
SC100-4126 SC100-5126 26 .1470 1 4
SC100-4127 SC100-5127 27 .1440 1 4
SC100-4128 SC100-5128 28 .1405 1 4
SC100-4129 SC100-5129 29 .1360 1 4
SC100-4130 SC100-5130 30 .1285 1 3-1/2
SC100-4131 SC100-5131 31 .1200 7/8 3-1/2
SC100-4132 SC100-5132 32 .1160 7/8 3-1/2
SC100-4133 SC100-5133 33 .1130 7/8 3-1/2
SC100-4134 SC100-5134 34 .1110 7/8 3-1/2
SC100-4135 SC100-5135 35 .1100 7/8 3-1/2
SC100-4136 SC100-5136 36 .1065 7/8 3-1/2
SC100-4137 SC100-5137 37 .1040 7/8 3-1/2
SC100-4138 SC100-5138 38 .1015 7/8 3-1/2
SC100-4139 SC100-5139 39 .0995 7/8 3-1/2
SC100-4140 SC100-5140 40 .0980 7/8 3-1/2
SC100-4141 SC100-5141 41 .0960 7/8 3-1/2
SC100-4142 SC100-5142 42 .0935 7/8 3
SC100-4143 SC100-5143 43 .0890 3/4 3
3/4
