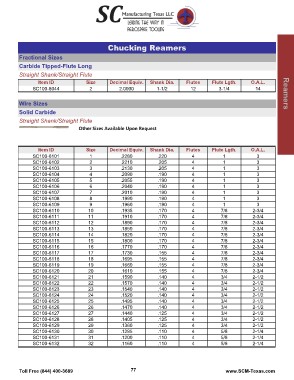

Page 79 - SCMT 2015 FULL Catalog

Reamers

Chucking Reamers

Fractional Sizes

Carbide Tipped-Flute Long

Straight Shank/Straight Flute Reamers

Item ID Size Decimal Equiv. Shank Dia. Flutes Flute Lgth. O.A.L.
SC100-8044 2 12 3-1/4 14
2.0000 1-1/2

Wire Sizes
Solid Carbide
Straight Shank/Straight Flute

Item ID Size Decimal Equiv. Shank Dia. Flutes Flute Lgth. O.A.L.

SC100-6101 1 .2280 .220 4 1 3
SC100-6102 2 .2210 .205 4 1 3
SC100-6103 3 .2130 .205 4 1 3
SC100-6104 4 .2090 .190 4 1 3
SC100-6105 5 .2055 .190 4 1 3
SC100-6106 6 .2040 .190 4 1 3
SC100-6107 7 .2010 .190 4 1 3
SC100-6108 8 .1990 .190 4 1 3
SC100-6109 9 .1960 .190 4 1 3
SC100-6110 10 .1935 .170 4 7/8 2-3/4
SC100-6111 11 .1910 .170 4 7/8 2-3/4
SC100-6112 12 .1890 .170 4 7/8 2-3/4
SC100-6113 13 .1850 .170 4 7/8 2-3/4
SC100-6114 14 .1820 .170 4 7/8 2-3/4
SC100-6115 15 .1800 .170 4 7/8 2-3/4
SC100-6116 16 .1770 .170 4 7/8 2-3/4
SC100-6117 17 .1730 .155 4 7/8 2-3/4
SC100-6118 18 .1695 .155 4 7/8 2-3/4
SC100-6119 19 .1660 .155 4 7/8 2-3/4
SC100-6120 20 .1610 .155 4 7/8 2-3/4
SC100-6121 21 .1590 .140 4 3/4 2-1/2
SC100-6122 22 .1570 .140 4 3/4 2-1/2
SC100-6123 23 .1540 .140 4 3/4 2-1/2
SC100-6124 24 .1520 .140 4 3/4 2-1/2
SC100-6125 25 .1495 .140 4 3/4 2-1/2
SC100-6126 26 .1470 .140 4 3/4 2-1/2
SC100-6127 27 .1440 .125 4 3/4 2-1/2
SC100-6128 28 .1405 .125 4 3/4 2-1/2
SC100-6129 29 .1360 .125 4 3/4 2-1/2
SC100-6130 30 .1285 .110 4 5/8 2-1/4
SC100-6131 31 .1200 .110 4 5/8 2-1/4
SC100-6132 32 .1160 .110 4 5/8 2-1/4
