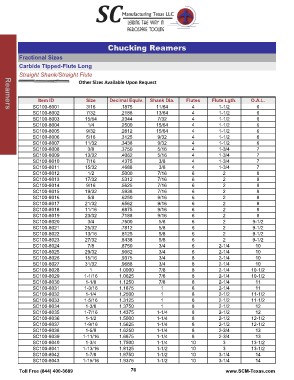

Page 78 - SCMT 2015 FULL Catalog

Reamers Chucking Reamers

Reamers Fractional Sizes
Carbide Tipped-Flute Long
Straight Shank/Straight Flute

Item ID Size Decimal Equiv. Shank Dia. Flutes Flute Lgth. O.A.L.

SC100-8001 3/16 .1875 11/64 4 1-1/2 6
SC100-8002 7/32 .2188 13/64 4 1-1/2 6
SC100-8003 15/64 .2344 7/32 4 1-1/2 6
SC100-8004 1/4 .2500 15/64 4 1-1/2 6
SC100-8005 9/32 .2812 15/64 4 1-1/2 6
SC100-8006 5/16 .3125 9/32 4 1-1/2 6
SC100-8007 11/32 .3438 9/32 4 1-1/2 6
SC100-8008 3/8 .3750 5/16 4 1-3/4 7
SC100-8009 13/32 .4062 5/16 4 1-3/4 7
SC100-8010 7/16 .4375 4 1-3/4 7
SC100-8011 15/32 .4688 3/8 4 1-3/4 7
SC100-8012 1/2 .5000 3/8 6 8
SC100-8013 17/32 .5312 7/16 6 2 8
SC100-8014 9/16 .5625 7/16 6 2 8
SC100-8015 19/32 .5938 7/16 6 2 8
SC100-8016 5/8 .6250 7/16 6 2 8
SC100-8017 21/32 .6562 9/16 6 2 8
SC100-8018 11/16 .6875 9/16 6 2 8
SC100-8019 23/32 .7188 9/16 6 2 8
SC100-8020 3/4 .7500 9/16 6 2 9-1/2
SC100-8021 25/32 .7812 5/8 6 2 9-1/2
SC100-8022 13/16 .8125 5/8 6 2 9-1/2
SC100-8023 27/32 .8438 5/8 6 2 9-1/2
SC100-8024 7/8 .8750 5/8 6 2 10
SC100-8025 29/32 .9062 3/4 6 2-1/4 10
SC100-8026 15/16 .9375 3/4 8 2-1/4 10
SC100-8027 31/32 .9688 3/4 8 2-1/4 10
SC100-8028 1.0000 3/4 8 2-1/4 10-1/2
SC100-8029 1 1.0625 7/8 8 2-1/4 10-1/2
SC100-8030 1-1/16 1.1250 7/8 8 2-1/4 11
SC100-8031 1-1/8 1.1875 7/8 8 2-1/4 11
SC100-8032 1-3/16 1.2500 1 8 2-1/4 11-1/2
SC100-8033 1-1/4 1.3125 1 8 2-1/2 11-1/2
SC100-8034 1-5/16 1.3750 1 8 2-1/2 12
SC100-8035 1-3/8 1.4375 1 8 2-1/2 12
SC100-8036 1-7/16 1.5000 1-1/4 8 2-1/2 12-1/2
SC100-8037 1-1/2 1.5625 1-1/4 8 2-1/2 12-1/2
SC100-8038 1-9/16 1.6250 1-1/4 8 2-1/2 13
SC100-8039 1-5/8 1.6875 1-1/4 8 2-3/4 13
SC100-8040 1-11/16 1.7500 1-1/4 10 2-3/4 13-1/2
SC100-8041 1-3/4 1.8125 1-1/4 10 3 13-1/2
SC100-8042 1-13/16 1.8750 1-1/2 10 3 14
SC100-8043 1-7/8 1.9375 1-1/2 10 3-1/4 14
1-15/16 1-1/2 3-1/4
