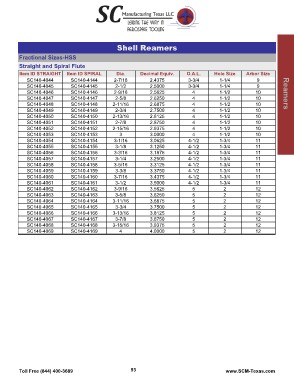

Page 95 - SCMT 2015 FULL Catalog

Reamers

Shell Reamers

Fractional Sizes-HSS

Straight and Spiral Flute

Item ID STRAIGHT Item ID SPIRAL Dia. Decimal Equiv. O.A.L. Hole Size Arbor Size Reamers

SC140-4044 SC140-4144 2-7/16 2.4375 3-3/4 1-1/4 9
SC140-4045 SC140-4145 2-1/2 2.5000 3-3/4 1-1/4 9
SC140-4046 SC140-4146 2-9/16 2.5625 1-1/2 10
SC140-4047 SC140-4147 2-5/8 2.6250 4 1-1/2 10
SC140-4048 SC140-4148 2-11/16 2.6875 4 1-1/2 10
SC140-4049 SC140-4149 2-3/4 2.7500 4 1-1/2 10
SC140-4050 SC140-4150 2-13/16 2.8125 4 1-1/2 10
SC140-4051 SC140-4151 2-7/8 2.8750 4 1-1/2 10
SC140-4052 SC140-4152 2-15/16 2.9375 4 1-1/2 10
SC140-4053 SC140-4153 3.0000 4 1-1/2 10
SC140-4054 SC140-4154 3 3.0625 4 1-3/4 11
SC140-4055 SC140-4155 3-1/16 3.1250 4-1/2 1-3/4 11
SC140-4056 SC140-4156 3-1/8 3.1875 4-1/2 1-3/4 11
SC140-4057 SC140-4157 3-3/16 3.2500 4-1/2 1-3/4 11
SC140-4058 SC140-4158 3-1/4 3.3125 4-1/2 1-3/4 11
SC140-4059 SC140-4159 3-5/16 3.3750 4-1/2 1-3/4 11
SC140-4060 SC140-4160 3-3/8 3.4375 4-1/2 1-3/4 11
SC140-4061 SC140-4161 3-7/16 3.5000 4-1/2 1-3/4 11
SC140-4062 SC140-4162 3-1/2 3.5625 4-1/2 12
SC140-4063 SC140-4163 3-9/16 3.6250 5 2 12
SC140-4064 SC140-4164 3-5/8 3.6875 5 2 12
SC140-4065 SC140-4165 3-11/16 3.7500 5 2 12
SC140-4066 SC140-4166 3-3/4 3.8125 5 2 12
SC140-4067 SC140-4167 3-13/16 3.8750 5 2 12
SC140-4068 SC140-4168 3-7/8 3.9375 5 2 12
SC140-4069 SC140-4169 3-15/16 4.0000 5 2 12
5 2
4
