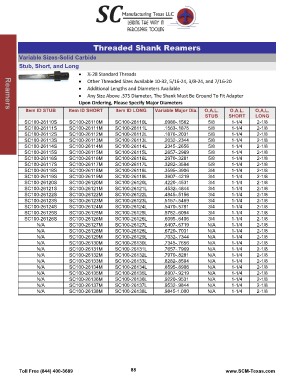

Page 90 - SCMT 2015 FULL Catalog

Reamers

Threaded Shank Reamers

Variable Sizes-Solid Carbide
Stub, Short, and Long

Reamers Item ID STUB Item ID SHORT Item ID LONG Variable Major Dia. O.A.L. O.A.L. O.A.L.
STUB SHORT LONG
SC100-26110S SC100-26110M SC100-26110L .0980-.1562 2-1/8
SC100-26111S SC100-26111M SC100-26111L .1563-.1875 5/8 1-1/4 2-1/8
SC100-26112S SC100-26112M SC100-26112L .1876-.2031 5/8 1-1/4 2-1/8
SC100-26113S SC100-26113M SC100-26113L .2032-.2344 5/8 1-1/4 2-1/8
SC100-26114S SC100-26114M SC100-26114L .2345-.2656 5/8 1-1/4 2-1/8
SC100-26115S SC100-26115M SC100-26115L .2657-.2969 5/8 1-1/4 2-1/8
SC100-26116S SC100-26116M SC100-26116L .2970-.3281 5/8 1-1/4 2-1/8
SC100-26117S SC100-26117M SC100-26117L .3282-.3594 5/8 1-1/4 2-1/8
SC100-26118S SC100-26118M SC100-26118L .3595-.3906 5/8 1-1/4 2-1/8
SC100-26119S SC100-26119M SC100-26119L .3907-.4219 3/4 1-1/4 2-1/8
SC100-26120S SC100-26120M SC100-26120L .4220-.4531 3/4 1-1/4 2-1/8
SC100-26121S SC100-26121M SC100-26121L .4532-.4844 3/4 1-1/4 2-1/8
SC100-26122S SC100-26122M SC100-26122L .4845-.5156 3/4 1-1/4 2-1/8
SC100-26123S SC100-26123M SC100-26123L .5157-.5469 3/4 1-1/4 2-1/8
SC100-26124S SC100-26124M SC100-26124L .5470-.5781 3/4 1-1/4 2-1/8
SC100-26125S SC100-26125M SC100-26125L .5782-.6094 3/4 1-1/4 2-1/8
SC100-26126S SC100-26126M SC100-26126L .6095-.6406 3/4 1-1/4 2-1/8
SC100-26127M SC100-26127L .6407-.6719 3/4 1-1/4 2-1/8
N/A SC100-26128M SC100-26128L .6720-.7031 N/A 1-1/4 2-1/8
N/A SC100-26129M SC100-26129L .7032-.7344 N/A 1-1/4 2-1/8
N/A SC100-26130M SC100-26130L .7345-.7656 N/A 1-1/4 2-1/8
N/A SC100-26131M SC100-26131L .7657-.7969 N/A 1-1/4 2-1/8
N/A SC100-26132M SC100-26132L .7970-.8281 N/A 1-1/4 2-1/8
N/A SC100-26133M SC100-26133L .8282-.8594 N/A 1-1/4 2-1/8
N/A SC100-26134M SC100-26134L .8595-.8906 N/A 1-1/4 2-1/8
N/A SC100-26135M SC100-26135L .8907-.9219 N/A 1-1/4 2-1/8
N/A SC100-26136M SC100-26136L .9220-.9531 N/A 1-1/4 2-1/8
N/A SC100-26137M SC100-26137L .9532-.9844 N/A 1-1/4 2-1/8
N/A SC100-26138M SC100-26138L .9845-1.000 N/A 1-1/4 2-1/8
N/A N/A 1-1/4

Toll Free (844) 400-3689 88 www.SCM-Texas.com
