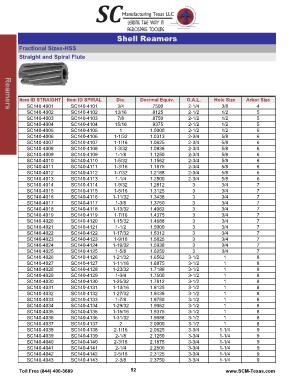

Page 94 - SCMT 2015 FULL Catalog

Shell Reamers

Fractional Sizes-HSS
Straight and Spiral Flute

Reamers Item ID STRAIGHT Item ID SPIRAL Dia. Decimal Equiv. O.A.L. Hole Size Arbor Size

SC140-4001 SC140-4101 3/4 .7500 2-1/4 3/8 4
SC140-4002 SC140-4102 13/16 .8125 2-1/2 1/2 5
SC140-4003 SC140-4103 .8750 2-1/2 1/2 5
SC140-4004 SC140-4104 7/8 .9375 2-1/2 1/2 5
SC140-4005 SC140-4105 15/16 1.0000 2-1/2 1/2 5
SC140-4006 SC140-4106 1.0313 2-3/4 5/8 6
SC140-4007 SC140-4107 1 1.0625 2-3/4 5/8 6
SC140-4008 SC140-4108 1-1/32 1.0938 2-3/4 5/8 6
SC140-4009 SC140-4109 1-1/16 1.1250 2-3/4 5/8 6
SC140-4010 SC140-4110 1-3/32 1.1562 2-3/4 5/8 6
SC140-4011 SC140-4111 1-1/8 1.1875 2-3/4 5/8 6
SC140-4012 SC140-4112 1-5/32 1.2188 2-3/4 5/8 6
SC140-4013 SC140-4113 1-3/16 1.2500 2-3/4 5/8 6
SC140-4014 SC140-4114 1-7/32 1.2812 3/4 7
SC140-4015 SC140-4115 1-1/4 1.3125 3 3/4 7
SC140-4016 SC140-4116 1-9/32 1.3438 3 3/4 7
SC140-4017 SC140-4117 1-5/16 1.3750 3 3/4 7
SC140-4018 SC140-4118 1-11/32 1.4062 3 3/4 7
SC140-4019 SC140-4119 1-3/8 1.4375 3 3/4 7
SC140-4020 SC140-4120 1-13/32 1.4688 3 3/4 7
SC140-4021 SC140-4121 1-7/16 1.5000 3 3/4 7
SC140-4022 SC140-4122 1-15/32 1.5312 3 3/4 7
SC140-4023 SC140-4123 1-1/2 1.5625 3 3/4 7
SC140-4024 SC140-4124 1-17/32 1.5938 3 3/4 7
SC140-4025 SC140-4125 1-9/16 1.6250 3 3/4 7
SC140-4026 SC140-4126 1-19/32 1.6562 3 1 8
SC140-4027 SC140-4127 1-5/8 1.6875 3-1/2 1 8
SC140-4028 SC140-4128 1-21/32 1.7188 3-1/2 1 8
SC140-4029 SC140-4129 1-11/16 1.7500 3-1/2 1 8
SC140-4030 SC140-4130 1-23/32 1.7812 3-1/2 1 8
SC140-4031 SC140-4131 1-3/4 1.8125 3-1/2 1 8
SC140-4032 SC140-4132 1-25/32 1.8438 3-1/2 1 8
SC140-4033 SC140-4133 1-13/16 1.8750 3-1/2 1 8
SC140-4034 SC140-4134 1-27/32 1.9062 3-1/2 1 8
SC140-4035 SC140-4135 1-7/8 1.9375 3-1/2 1 8
SC140-4036 SC140-4136 1-29/32 1.9688 3-1/2 1 8
SC140-4037 SC140-4137 1-15/16 2.0000 3-1/2 1 8
SC140-4038 SC140-4138 1-31/32 2.0625 3-1/2 1-1/4 9
SC140-4039 SC140-4139 2.1250 3-3/4 1-1/4 9
SC140-4040 SC140-4140 2 2.1875 3-3/4 1-1/4 9
SC140-4041 SC140-4141 2-1/16 2.2500 3-3/4 1-1/4 9
SC140-4042 SC140-4142 2-1/8 2.3125 3-3/4 1-1/4 9
SC140-4043 SC140-4143 2-3/16 2.3750 3-3/4 1-1/4 9
2-1/4 3-3/4
2-5/16
2-3/8

Toll Free (844) 400-3689 92 www.SCM-Texas.com
