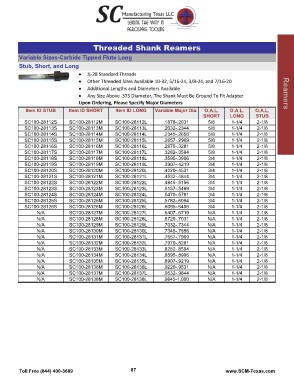

Page 89 - SCMT 2015 FULL Catalog

Reamers

Threaded Shank Reamers

Variable Sizes-Carbide Tipped Flute Long
Stub, Short, and Long

Item ID STUB Item ID SHORT Item ID LONG Variable Major Dia. O.A.L. O.A.L. O.A.L. Reamers
SHORT LONG STUB
SC100-28112S SC100-28112M SC100-28112L .1876-.2031 1-1/4 2-1/8
SC100-28113S SC100-28113M SC100-28113L .2032-.2344 5/8 1-1/4 2-1/8
SC100-28114S SC100-28114M SC100-28114L .2345-.2656 5/8 1-1/4 2-1/8
SC100-28115S SC100-28115M SC100-28115L .2657-.2969 5/8 1-1/4 2-1/8
SC100-28116S SC100-28116M SC100-28116L .2970-.3281 5/8 1-1/4 2-1/8
SC100-28117S SC100-28117M SC100-28117L .3282-.3594 5/8 1-1/4 2-1/8
SC100-28118S SC100-28118M SC100-28118L .3595-.3906 5/8 1-1/4 2-1/8
SC100-28119S SC100-28119M SC100-28119L .3907-.4219 3/4 1-1/4 2-1/8
SC100-28120S SC100-28120M SC100-28120L .4220-.4531 3/4 1-1/4 2-1/8
SC100-28121S SC100-28121M SC100-28121L .4532-.4844 3/4 1-1/4 2-1/8
SC100-28122S SC100-28122M SC100-28122L .4845-.5156 3/4 1-1/4 2-1/8
SC100-28123S SC100-28123M SC100-28123L .5157-.5469 3/4 1-1/4 2-1/8
SC100-28124S SC100-28124M SC100-28124L .5470-.5781 3/4 1-1/4 2-1/8
SC100-28125S SC100-28125M SC100-28125L .5782-.6094 3/4 1-1/4 2-1/8
SC100-28126S SC100-28126M SC100-28126L .6095-.6406 3/4 1-1/4 2-1/8
SC100-28127M SC100-28127L .6407-.6719 3/4 1-1/4 2-1/8
N/A SC100-28128M SC100-28128L .6720-.7031 N/A 1-1/4 2-1/8
N/A SC100-28129M SC100-28129L .7032-.7344 N/A 1-1/4 2-1/8
N/A SC100-28130M SC100-28130L .7345-.7656 N/A 1-1/4 2-1/8
N/A SC100-28131M SC100-28131L .7657-.7969 N/A 1-1/4 2-1/8
N/A SC100-28132M SC100-28132L .7970-.8281 N/A 1-1/4 2-1/8
N/A SC100-28133M SC100-28133L .8282-.8594 N/A 1-1/4 2-1/8
N/A SC100-28134M SC100-28134L .8595-.8906 N/A 1-1/4 2-1/8
N/A SC100-28135M SC100-28135L .8907-.9219 N/A 1-1/4 2-1/8
N/A SC100-28136M SC100-28136L .9220-.9531 N/A 1-1/4 2-1/8
N/A SC100-28137M SC100-28137L .9532-.9844 N/A 1-1/4 2-1/8
N/A SC100-28138M SC100-28138L .9845-1.000 N/A 1-1/4 2-1/8
N/A N/A
