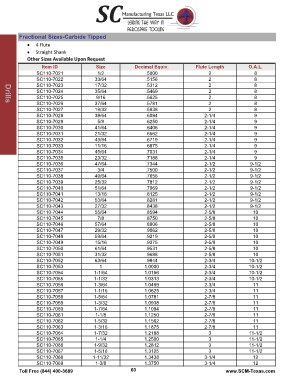

Page 62 - SCMT 2015 FULL Catalog

Fractional Sizes-Carbide Tipped

Drills Item ID Size Decimal Equiv. Flute Length O.A.L.

SC110-7021 1/2 .5000 2 8
SC110-7022 33/64 .5156 2 8
SC110-7023 17/32 .5312 2 8
SC110-7024 35/64 .5469 2 8
SC110-7025 9/16 .5625 2 8
SC110-7026 37/64 .5781 2 8
SC110-7027 19/32 .5938 2 8
SC110-7028 39/64 .6094 2-1/4 9
SC110-7029 .6250 2-1/4 9
SC110-7030 5/8 .6406 2-1/4 9
SC110-7031 41/64 .6562 2-1/4 9
SC110-7032 21/32 .6719 2-1/4 9
SC110-7033 43/64 .6875 2-1/4 9
SC110-7034 11/16 .7031 2-1/4 9
SC110-7035 45/64 .7188 2-1/4 9
SC110-7036 23/32 .7344 2-1/2 9-1/2
SC110-7037 47/64 .7500 2-1/2 9-1/2
SC110-7038 .7656 2-1/2 9-1/2
SC110-7039 3/4 .7812 2-1/2 9-1/2
SC110-7040 49/64 .7969 2-1/2 9-1/2
SC110-7041 25/32 .8125 2-1/2 9-1/2
SC110-7042 51/64 .8281 2-1/2 9-1/2
SC110-7043 13/16 .8438 2-1/2 9-1/2
SC110-7044 53/64 .8594 2-5/8 10
SC110-7045 27/32 .8750 2-5/8 10
SC110-7046 55/64 .8906 2-5/8 10
SC110-7047 .9062 2-5/8 10
SC110-7048 7/8 .9219 2-5/8 10
SC110-7049 57/64 .9375 2-5/8 10
SC110-7050 29/32 .9531 2-5/8 10
SC110-7051 59/64 .9688 2-5/8 10
SC110-7052 15/16 .9844 2-3/4 10-1/2
SC110-7053 61/64 1.0000 2-3/4 10-1/2
SC110-7054 31/32 1.0156 2-3/4 10-1/2
SC110-7055 63/64 1.0313 2-3/4 10-1/2
SC110-7056 1.0469 2-3/4 11
SC110-7057 1 1.0625 2-3/4 11
SC110-7058 1-1/64 1.0781 2-7/8 11
SC110-7059 1-1/32 1.0938 2-7/8 11
SC110-7060 1-3/64 1.1094 2-7/8 11
SC110-7061 1-1/16 1.1250 2-7/8 11
SC110-7062 1-5/64 1.1562 2-7/8 11
SC110-7063 1-3/32 1.1875 2-7/8 11
SC110-7064 1-7/64 1.2188 3 11-1/2
SC110-7065 1-1/8 1.2500 3 11-1/2
SC110-7066 1-5/32 1.2812 3 11-1/2
SC110-7067 1-3/16 1.3125 3 11-1/2
SC110-7068 1-7/32 1.3438 3-1/4 12
SC110-7069 1-1/4 1.3750 3-1/4 12
1-9/32
Toll Free (844) 400-3689 1-5/16 60
1-11/32
1-3/8

www.SCM-Texas.com
