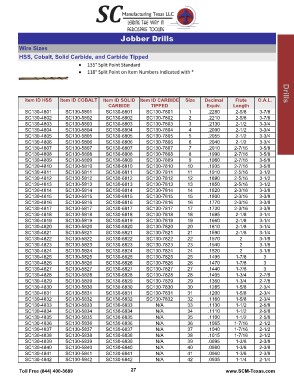

Page 29 - SCMT 2015 FULL Catalog

Jobber Drills

Wire Sizes
HSS, Cobalt, Solid Carbide, and Carbide Tipped

Item ID HSS Item ID COBALT Item ID SOLID Item ID CARBIDE Size Decimal Flute O.A.L. Drills
CARBIDE TIPPED Equiv. Length
SC130-4801 SC130-5801 1 .2280 3-7/8
SC130-4802 SC130-5802 SC130-6801 SC130-7801 2 .2210 2-5/8 3-7/8
SC130-4803 SC130-5803 SC130-6802 SC130-7802 3 .2130 2-5/8 3-3/4
SC130-4804 SC130-5804 SC130-6803 SC130-7803 4 .2090 2-1/2 3-3/4
SC130-4805 SC130-5805 SC130-6804 SC130-7804 5 .2055 2-1/2 3-3/4
SC130-4806 SC130-5806 SC130-6805 SC130-7805 6 .2040 2-1/2 3-3/4
SC130-4807 SC130-5807 SC130-6806 SC130-7806 7 .2010 2-1/2 3-5/8
SC130-4808 SC130-5808 SC130-6807 SC130-7807 8 .1990 2-7/16 3-5/8
SC130-4809 SC130-5809 SC130-6808 SC130-7808 9 .1960 2-7/16 3-5/8
SC130-4810 SC130-5810 SC130-6809 SC130-7809 10 .1935 2-7/16 3-5/8
SC130-4811 SC130-5811 SC130-6810 SC130-7810 11 .1910 2-7/16 3-1/2
SC130-4812 SC130-5812 SC130-6811 SC130-7811 12 .1890 2-5/16 3-1/2
SC130-4813 SC130-5813 SC130-6812 SC130-7812 13 .1850 2-5/16 3-1/2
SC130-4814 SC130-5814 SC130-6813 SC130-7813 14 .1820 2-5/16 3-3/8
SC130-4815 SC130-5815 SC130-6814 SC130-7814 15 .1800 2-3/16 3-3/8
SC130-4816 SC130-5816 SC130-6815 SC130-7815 16 .1770 2-3/16 3-3/8
SC130-4817 SC130-5817 SC130-6816 SC130-7816 17 .1730 2-3/16 3-3/8
SC130-4818 SC130-5818 SC130-6817 SC130-7817 18 .1695 2-3/16 3-1/4
SC130-4819 SC130-5819 SC130-6818 SC130-7818 19 .1660 2-1/8 3-1/4
SC130-4820 SC130-5820 SC130-6819 SC130-7819 20 .1610 2-1/8 3-1/4
SC130-4821 SC130-5821 SC130-6820 SC130-7820 21 .1590 2-1/8 3-1/4
SC130-4822 SC130-5822 SC130-6821 SC130-7821 22 .1570 2-1/8 3-1/8
SC130-4823 SC130-5823 SC130-6822 SC130-7822 23 .1540 3-1/8
SC130-4824 SC130-5824 SC130-6823 SC130-7823 24 .1520 2 3-1/8
SC130-4825 SC130-5825 SC130-6824 SC130-7824 25 .1495 2
SC130-4826 SC130-5826 SC130-6825 SC130-7825 26 .1470 2 3
SC130-4827 SC130-5827 SC130-6826 SC130-7826 27 .1440 1-7/8 3
SC130-4828 SC130-5828 SC130-6827 SC130-7827 28 .1405 1-7/8 3
SC130-4829 SC130-5829 SC130-6828 SC130-7828 29 .1360 1-7/8 2-7/8
SC130-4830 SC130-5830 SC130-6829 SC130-7829 30 .1285 1-3/4 2-7/8
SC130-4831 SC130-5831 SC130-6830 SC130-7830 31 .1200 1-3/4 2-3/4
SC130-4832 SC130-5832 SC130-6831 SC130-7831 32 .1160 1-5/8 2-3/4
SC130-4833 SC130-5833 SC130-6832 SC130-7832 33 .1130 1-5/8 2-3/4
SC130-4834 SC130-5834 SC130-6833 34 .1110 1-5/8 2-5/8
SC130-4835 SC130-5835 SC130-6834 N/A 35 .1100 1-1/2 2-5/8
SC130-4836 SC130-5836 SC130-6835 N/A 36 .1065 1-1/2 2-5/8
SC130-4837 SC130-5837 SC130-6836 N/A 37 .1040 1-1/2 2-1/2
SC130-4838 SC130-5838 SC130-6837 N/A 38 .1015 1-7/16 2-1/2
SC130-4839 SC130-5839 SC130-6838 N/A 39 .0995 1-7/16 2-1/2
SC130-4840 SC130-5840 SC130-6839 N/A 40 .0980 1-7/16 2-3/8
SC130-4841 SC130-5841 SC130-6840 N/A 41 .0960 1-3/8 2-3/8
SC130-4842 SC130-5842 SC130-6841 N/A 42 .0935 1-3/8 2-3/8
SC130-6842 N/A 1-3/8 2-1/4
N/A 1-1/4

Toll Free (844) 400-3689 27 www.SCM-Texas.com
