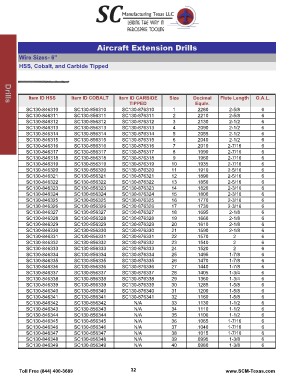

Page 34 - SCMT 2015 FULL Catalog
P. 34
Drills
Aircraft Extension Drills
Wire Sizes- 6"
HSS, Cobalt, and Carbide Tipped
Drills Item ID HSS Item ID COBALT Item ID CARBIDE Size Decimal Flute Length O.A.L.
TIPPED Equiv.
SC130-846310 SC130-856310 1 .2280 2-5/8 6
SC130-846311 SC130-856311 SC130-876310 2 .2210 2-5/8 6
SC130-846312 SC130-856312 SC130-876311 3 .2130 2-1/2 6
SC130-846313 SC130-856313 SC130-876312 4 .2090 2-1/2 6
SC130-846314 SC130-856314 SC130-876313 5 .2055 2-1/2 6
SC130-846315 SC130-856315 SC130-876314 6 .2040 2-1/2 6
SC130-846316 SC130-856316 SC130-876315 7 .2010 2-7/16 6
SC130-846317 SC130-856317 SC130-876316 8 .1990 2-7/16 6
SC130-846318 SC130-856318 SC130-876317 9 .1960 2-7/16 6
SC130-846319 SC130-856319 SC130-876318 10 .1935 2-7/16 6
SC130-846320 SC130-856320 SC130-876319 11 .1910 2-5/16 6
SC130-846321 SC130-856321 SC130-876320 12 .1890 2-5/16 6
SC130-846322 SC130-856322 SC130-876321 13 .1850 2-5/16 6
SC130-846323 SC130-856323 SC130-876322 14 .1820 2-3/16 6
SC130-846324 SC130-856324 SC130-876323 15 .1800 2-3/16 6
SC130-846325 SC130-856325 SC130-876324 16 .1770 2-3/16 6
SC130-846326 SC130-856326 SC130-876325 17 .1730 2-3/16 6
SC130-846327 SC130-856327 SC130-876326 18 .1695 2-1/8 6
SC130-846328 SC130-856328 SC130-876327 19 .1660 2-1/8 6
SC130-846329 SC130-856329 SC130-876328 20 .1610 2-1/8 6
SC130-846330 SC130-856330 SC130-876329 21 .1590 2-1/8 6
SC130-846331 SC130-856331 SC130-876330 22 .1570 6
SC130-846332 SC130-856332 SC130-876331 23 .1540 2 6
SC130-846333 SC130-856333 SC130-876332 24 .1520 2 6
SC130-846334 SC130-856334 SC130-876333 25 .1495 2 6
SC130-846335 SC130-856335 SC130-876334 26 .1470 1-7/8 6
SC130-846336 SC130-856336 SC130-876335 27 .1440 1-7/8 6
SC130-846337 SC130-856337 SC130-876336 28 .1405 1-7/8 6
SC130-846338 SC130-856338 SC130-876337 29 .1360 1-3/4 6
SC130-846339 SC130-856339 SC130-876338 30 .1285 1-3/4 6
SC130-846340 SC130-856340 SC130-876339 31 .1200 1-5/8 6
SC130-846341 SC130-856341 SC130-876340 32 .1160 1-5/8 6
SC130-846342 SC130-856342 SC130-876341 33 .1130 1-5/8 6
SC130-846343 SC130-856343 34 .1110 1-1/2 6
SC130-846344 SC130-856344 N/A 35 .1100 1-1/2 6
SC130-846345 SC130-856345 N/A 36 .1065 1-1/2 6
SC130-846346 SC130-856346 N/A 37 .1040 1-7/16 6
SC130-846347 SC130-856347 N/A 38 .1015 1-7/16 6
SC130-846348 SC130-856348 N/A 39 .0995 1-7/16 6
SC130-846349 SC130-856349 N/A 40 .0980 1-3/8 6
N/A 1-3/8
N/A
Toll Free (844) 400-3689 32 www.SCM-Texas.com
