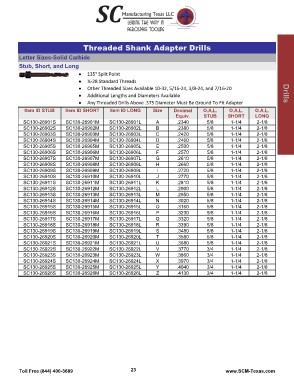

Page 25 - SCMT 2015 FULL Catalog

Drills

Threaded Shank Adapter Drills

Letter Sizes-Solid Carbide
Stub, Short, and Long

Drills

Item ID STUB Item ID SHORT Item ID LONG Size Decimal O.A.L. O.A.L. O.A.L.
Equiv. STUB SHORT LONG
SC130-26901S SC130-26901M SC130-26901L A .2340 2-1/8
SC130-26902S SC130-26902M SC130-26902L B .2380 5/8 1-1/4 2-1/8
SC130-26903S SC130-26903M SC130-26903L C .2420 5/8 1-1/4 2-1/8
SC130-26904S SC130-26904M SC130-26904L D .2460 5/8 1-1/4 2-1/8
SC130-26905S SC130-26905M SC130-26905L E .2500 5/8 1-1/4 2-1/8
SC130-26906S SC130-26906M SC130-26906L F .2570 5/8 1-1/4 2-1/8
SC130-26907S SC130-26907M SC130-26907L G .2610 5/8 1-1/4 2-1/8
SC130-26908S SC130-26908M SC130-26908L H .2660 5/8 1-1/4 2-1/8
SC130-26909S SC130-26909M SC130-26909L I .2720 5/8 1-1/4 2-1/8
SC130-26910S SC130-26910M SC130-26910L J .2770 5/8 1-1/4 2-1/8
SC130-26911S SC130-26911M SC130-26911L K .2810 5/8 1-1/4 2-1/8
SC130-26912S SC130-26912M SC130-26912L L .2900 5/8 1-1/4 2-1/8
SC130-26913S SC130-26913M SC130-26913L M .2950 5/8 1-1/4 2-1/8
SC130-26914S SC130-26914M SC130-26914L N .3020 5/8 1-1/4 2-1/8
SC130-26915S SC130-26915M SC130-26915L O .3160 5/8 1-1/4 2-1/8
SC130-26916S SC130-26916M SC130-26916L P .3230 5/8 1-1/4 2-1/8
SC130-26917S SC130-26917M SC130-26917L Q .3320 5/8 1-1/4 2-1/8
SC130-26918S SC130-26918M SC130-26918L R .3390 5/8 1-1/4 2-1/8
SC130-26919S SC130-26919M SC130-26919L S .3480 5/8 1-1/4 2-1/8
SC130-26920S SC130-26920M SC130-26920L T .3580 5/8 1-1/4 2-1/8
SC130-26921S SC130-26921M SC130-26921L U .3680 5/8 1-1/4 2-1/8
SC130-26922S SC130-26922M SC130-26922L V .3770 5/8 1-1/4 2-1/8
SC130-26923S SC130-26923M SC130-26923L W .3860 3/4 1-1/4 2-1/8
SC130-26924S SC130-26924M SC130-26924L X .3970 3/4 1-1/4 2-1/8
SC130-26925S SC130-26925M SC130-26925L Y .4040 3/4 1-1/4 2-1/8
SC130-26926S SC130-26926M SC130-26926L Z .4130 3/4 1-1/4 2-1/8
3/4 1-1/4
