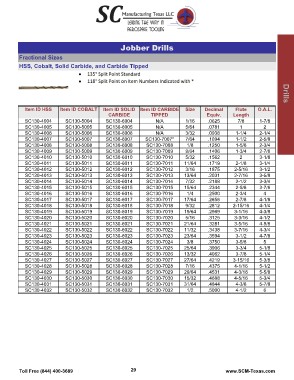

Page 31 - SCMT 2015 FULL Catalog

Drills

Jobber Drills

Fractional Sizes
HSS, Cobalt, Solid Carbide, and Carbide Tipped

Drills

Item ID HSS Item ID COBALT Item ID SOLID Item ID CARBIDE Size Decimal Flute O.A.L.
CARBIDE TIPPED Equiv. Length
SC130-4004 SC130-5004 N/A 1/16 .0625 1-7/8
SC130-4005 SC130-5005 SC130-6004 N/A 5/64 .0781 7/8 2
SC130-4006 SC130-5006 SC130-6005 N/A 3/32 .0938 1
SC130-4007 SC130-5007 SC130-6006 7/64 .1094 1-1/4 2-1/4
SC130-4008 SC130-5008 SC130-6007 SC130-7007* 1/8 .1250 1-1/2 2-5/8
SC130-4009 SC130-5009 SC130-6008 SC130-7008 9/64 .1406 1-5/8 2-3/4
SC130-4010 SC130-5010 SC130-6009 SC130-7009 5/32 .1562 1-3/4 2-7/8
SC130-4011 SC130-5011 SC130-6010 SC130-7010 11/64 .1719 2 3-1/8
SC130-4012 SC130-5012 SC130-6011 SC130-7011 3/16 .1875 2-1/8 3-1/4
SC130-4013 SC130-5013 SC130-6012 SC130-7012 13/64 .2031 2-5/16 3-1/2
SC130-4014 SC130-5014 SC130-6013 SC130-7013 7/32 .2188 2-7/16 3-5/8
SC130-4015 SC130-5015 SC130-6014 SC130-7014 15/64 .2344 2-1/2 3-3/4
SC130-4016 SC130-5016 SC130-6015 SC130-7015 1/4 .2500 2-5/8 3-7/8
SC130-4017 SC130-5017 SC130-6016 SC130-7016 17/64 .2656 2-3/4
SC130-4018 SC130-5018 SC130-6017 SC130-7017 9/32 .2812 2-7/8 4
SC130-4019 SC130-5019 SC130-6018 SC130-7018 19/64 .2969 2-15/16 4-1/8
SC130-4020 SC130-5020 SC130-6019 SC130-7019 5/16 .3125 3-1/16 4-1/4
SC130-4021 SC130-5021 SC130-6020 SC130-7020 21/64 .3281 3-3/16 4-3/8
SC130-4022 SC130-5022 SC130-6021 SC130-7021 11/32 .3438 3-5/16 4-1/2
SC130-4023 SC130-5023 SC130-6022 SC130-7022 23/64 .3594 3-7/16 4-5/8
SC130-4024 SC130-5024 SC130-6023 SC130-7023 3/8 .3750 3-1/2 4-3/4
SC130-4025 SC130-5025 SC130-6024 SC130-7024 25/64 .3906 3-5/8 4-7/8
SC130-4026 SC130-5026 SC130-6025 SC130-7025 13/32 .4062 3-3/4
SC130-4027 SC130-5027 SC130-6026 SC130-7026 27/64 .4219 3-7/8 5
SC130-4028 SC130-5028 SC130-6027 SC130-7027 7/16 .4375 3-15/16 5-1/8
SC130-4029 SC130-5029 SC130-6028 SC130-7028 29/64 .4531 4-1/16 5-1/4
SC130-4030 SC130-5030 SC130-6029 SC130-7029 15/32 .4688 4-3/16 5-3/8
SC130-4031 SC130-5031 SC130-6030 SC130-7030 31/64 .4844 4-5/16 5-1/2
SC130-4032 SC130-5032 SC130-6031 SC130-7031 1/2 .5000 4-3/8 5-5/8
SC130-6032 SC130-7032 4-1/2 5-3/4
5-7/8

6
