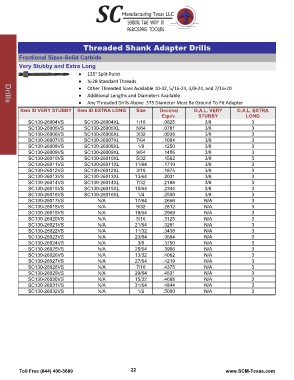

Page 24 - SCMT 2015 FULL Catalog

Drills

Threaded Shank Adapter Drills

Fractional Sizes-Solid Carbide
Very Stubby and Extra Long

Drills

Item ID VERY STUBBY Item ID EXTRA LONG Size Decimal O.A.L. VERY O.A.L. EXTRA
Equiv. STUBBY LONG
SC130-26004VS SC130-26004XL 1/16 .0625 3/8 3
SC130-26005VS SC130-26005XL 5/64 .0781 3/8 3
SC130-26006VS SC130-26006XL 3/32 .0938 3/8 3
SC130-26007VS SC130-26007XL 7/64 .1094 3/8 3
SC130-26008VS SC130-26008XL 1/8 .1250 3/8 3
SC130-26009VS SC130-26009XL 9/64 .1406 3/8 3
SC130-26010VS SC130-26010XL 5/32 .1562 3/8 3
SC130-26011VS SC130-26011XL 11/64 .1719 3/8 3
SC130-26012VS SC130-26012XL 3/16 .1875 3/8 3
SC130-26013VS SC130-26013XL 13/64 .2031 3/8 3
SC130-26014VS SC130-26014XL 7/32 .2188 3/8 3
SC130-26015VS SC130-26015XL 15/64 .2344 3/8 3
SC130-26016VS SC130-26016XL 1/4 .2500 3/8 3
SC130-26017VS 17/64 .2656 N/A 3
SC130-26018VS N/A 9/32 .2812 N/A 3
SC130-26019VS N/A 19/64 .2969 N/A 3
SC130-26020VS N/A 5/16 .3125 N/A 3
SC130-26021VS N/A 21/64 .3281 N/A 3
SC130-26022VS N/A 11/32 .3438 N/A 3
SC130-26023VS N/A 23/64 .3594 N/A 3
SC130-26024VS N/A 3/8 .3750 N/A 3
SC130-26025VS N/A 25/64 .3906 N/A 3
SC130-26026VS N/A 13/32 .4062 N/A 3
SC130-26027VS N/A 27/64 .4219 N/A 3
SC130-26028VS N/A 7/16 .4375 N/A 3
SC130-26029VS N/A 29/64 .4531 N/A 3
SC130-26030VS N/A 15/32 .4688 N/A 3
SC130-26031VS N/A 31/64 .4844 N/A 3
SC130-26032VS N/A 1/2 .5000 N/A 3
N/A
