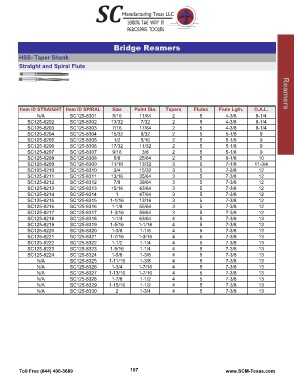

Page 109 - SCMT 2015 FULL Catalog

Reamers Bridge Reamers

HSS- Taper Shank
Straight and Spiral Flute

Item ID STRAIGHT Item ID SPIRAL Size Point Dia. Tapers Flutes Flute Lgth. O.A.L. Reamers

N/A SC125-8301 5/16 11/64 2 5 4-3/8 8-1/4
SC125-8202 SC125-8302 13/32 7/32 2 5 4-3/8 8-1/4
SC125-8203 SC125-8303 7/16 17/64 2 5 4-3/8 8-1/4
SC125-8204 SC125-8304 15/32 9/32 2 5 5-1/8
SC125-8205 SC125-8305 5/16 2 5 5-1/8 9
SC125-8206 SC125-8306 1/2 11/32 2 5 5-1/8 9
SC125-8207 SC125-8307 17/32 3/8 2 5 5-1/8 9
SC125-8208 SC125-8308 9/16 25/64 2 5 6-1/8 9
SC125-8209 SC125-8309 13/32 3 5 7-1/8 10
SC125-8210 SC125-8310 5/8 15/32 3 5 7-3/8 11-3/4
SC125-8211 SC125-8311 11/16 35/64 3 5 7-3/8 12
SC125-8212 SC125-8312 39/64 3 5 7-3/8 12
SC125-8213 SC125-8313 3/4 43/64 3 5 7-3/8 12
SC125-8214 SC125-8314 13/16 47/64 3 5 7-3/8 12
SC125-8215 SC125-8315 13/16 3 5 7-3/8 12
SC125-8216 SC125-8316 7/8 55/64 3 5 7-3/8 12
SC125-8217 SC125-8317 15/16 59/64 3 5 7-3/8 12
SC125-8218 SC125-8318 63/64 4 5 7-3/8 12
SC125-8219 SC125-8319 1 1-1/16 4 5 7-3/8 13
SC125-8220 SC125-8320 1-1/16 1-1/8 4 5 7-3/8 13
SC125-8221 SC125-8321 1-1/8 1-3/16 4 5 7-3/8 13
SC125-8222 SC125-8322 1-3/16 1-1/4 4 5 7-3/8 13
SC125-8223 SC125-8323 1-1/4 1-1/4 4 5 7-3/8 13
SC125-8224 SC125-8324 1-5/16 1-3/8 4 5 7-3/8 13
SC125-8325 1-3/8 1-3/8 4 5 7-3/8 13
N/A SC125-8326 1-7/16 1-7/16 4 5 7-3/8 13
N/A SC125-8327 1-1/2 1-7/16 4 5 7-3/8 13
N/A SC125-8328 1-9/16 1-1/2 4 5 7-3/8 13
N/A SC125-8329 1-5/8 1-1/2 4 5 7-3/8 13
N/A SC125-8330 1-11/16 1-3/4 4 5 7-3/8 13
N/A 1-3/4 13
1-13/16
1-7/8
1-15/16

2

Toll Free (844) 400-3689 107 www.SCM-Texas.com
