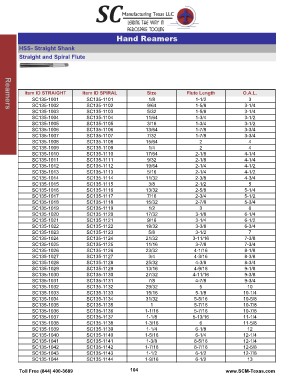

Page 106 - SCMT 2015 FULL Catalog

Hand Reamers

HSS- Straight Shank
Straight and Spiral Flute

Reamers Item ID STRAIGHT Item ID SPIRAL Size Flute Length O.A.L.

SC135-1001 SC135-1101 1/8 1-1/2 3
SC135-1002 SC135-1102 9/64 1-5/8 3-1/4
SC135-1003 SC135-1103 5/32 1-5/8 3-1/4
SC135-1004 SC135-1104 11/64 1-3/4 3-1/2
SC135-1005 SC135-1105 3/16 1-3/4 3-1/2
SC135-1006 SC135-1106 13/64 1-7/8 3-3/4
SC135-1007 SC135-1107 7/32 1-7/8 3-3/4
SC135-1008 SC135-1108 15/64
SC135-1009 SC135-1109 1/4 2 4
SC135-1010 SC135-1110 17/64 2 4
SC135-1011 SC135-1111 9/32 2-1/8 4-1/4
SC135-1012 SC135-1112 19/64 2-1/8 4-1/4
SC135-1013 SC135-1113 5/16 2-1/4 4-1/2
SC135-1014 SC135-1114 11/32 2-1/4 4-1/2
SC135-1015 SC135-1115 3/8 2-3/8 4-3/4
SC135-1016 SC135-1116 13/32 2-1/2 5
SC135-1017 SC135-1117 7/16 2-5/8 5-1/4
SC135-1018 SC135-1118 15/32 2-3/4 5-1/2
SC135-1019 SC135-1119 1/2 2-7/8 5-3/4
SC135-1020 SC135-1120 17/32 3 6
SC135-1021 SC135-1121 9/16 3-1/8 6-1/4
SC135-1022 SC135-1122 19/32 3-1/4 6-1/2
SC135-1023 SC135-1123 5/8 3-3/8 6-3/4
SC135-1024 SC135-1124 21/32 3-1/2 7
SC135-1025 SC135-1125 11/16 3-11/16 7-3/8
SC135-1026 SC135-1126 23/32 3-7/8 7-3/4
SC135-1027 SC135-1127 3/4 4-1/16 8-1/8
SC135-1028 SC135-1128 25/32 4-3/16 8-3/8
SC135-1029 SC135-1129 13/16 4-3/8 8-3/4
SC135-1030 SC135-1130 27/32 4-9/16 9-1/8
SC135-1031 SC135-1131 7/8 4-11/16 9-3/8
SC135-1032 SC135-1132 29/32 4-7/8 9-3/4
SC135-1033 SC135-1133 15/16 5 10
SC135-1034 SC135-1134 31/32 5-1/8 10-1/4
SC135-1035 SC135-1135 5-5/16 10-5/8
SC135-1036 SC135-1136 1 5-7/16 10-7/8
SC135-1037 SC135-1137 1-1/16 5-7/16 10-7/8
SC135-1038 SC135-1138 1-1/8 5-13/16 11-1/4
SC135-1039 SC135-1139 1-3/16 6 11-5/8
SC135-1040 SC135-1140 1-1/4 6-1/8 12
SC135-1041 SC135-1141 1-5/16 6-1/4 12-1/4
SC135-1042 SC135-1142 1-3/8 6-5/16 12-1/4
SC135-1043 SC135-1143 1-7/16 6-7/16 12-5/8
SC135-1044 SC135-1144 1-1/2 6-1/2 12-7/8
1-9/16 6-1/2 13
Toll Free (844) 400-3689
104 www.SCM-Texas.com
