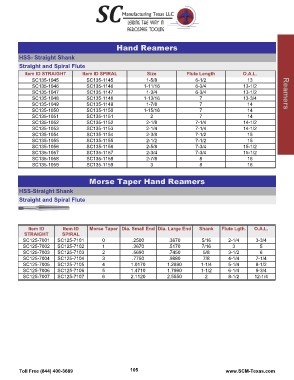

Page 107 - SCMT 2015 FULL Catalog

Reamers

Hand Reamers

HSS- Straight Shank

Straight and Spiral Flute

Item ID STRAIGHT Item ID SPIRAL Size Flute Length O.A.L. Reamers

SC135-1045 SC135-1145 1-5/8 6-1/2 13
SC135-1046 SC135-1146 1-11/16 6-3/4 13-1/2
SC135-1047 SC135-1147 6-3/4 13-1/2
SC135-1048 SC135-1148 1-3/4 13-3/4
SC135-1049 SC135-1149 1-13/16 7
SC135-1050 SC135-1150 7 14
SC135-1051 SC135-1151 1-7/8 7 14
SC135-1052 SC135-1152 1-15/16 7 14
SC135-1053 SC135-1153 7-1/4 14-1/2
SC135-1054 SC135-1154 2 7-1/4 14-1/2
SC135-1055 SC135-1155 2-1/8 7-1/2 15
SC135-1056 SC135-1156 2-1/4 7-1/2 15
SC135-1057 SC135-1157 2-3/8 7-3/4 15-1/2
SC135-1058 SC135-1158 2-1/2 7-3/4 15-1/2
SC135-1059 SC135-1159 2-5/8 8 16
2-3/4 8 16
2-7/8

3

Morse Taper Hand Reamers

HSS-Straight Shank
Straight and Spiral Flute

Item ID Item ID Morse Taper Dia. Small End Dia. Large End Shank Flute Lgth. O.A.L.
STRAIGHT SPIRAL
SC125-7001 SC125-7101 0 .2500 .3670 5/16 2-1/4 3-3/4
SC125-7002 SC125-7102 7/16 3 5
SC125-7003 SC125-7103 1 .3670 .5170 5/8 6
SC125-7004 SC125-7104 7/8 3-1/2
SC125-7005 SC125-7105 2 .5690 .7450 1-1/4 4-1/4 7-1/4
SC125-7006 SC125-7106 1-1/2 5-1/4 8-1/2
SC125-7007 SC125-7107 3 .7750 .9880 6-1/4 9-3/4
2 8-1/2 12-1/4
4 1.0170 1.2890

5 1.4710 1.7990

6 2.1120 2.5550

Toll Free (844) 400-3689 105 www.SCM-Texas.com
