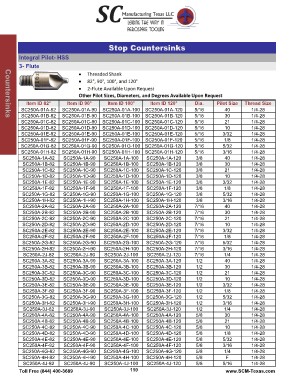

Page 112 - SCMT 2015 FULL Catalog

Countersinks Stop Countersinks

Countersinks Integral Pilot- HSS
3- Flute

Item ID 82° Item ID 90° Item ID 100° Item ID 120° Dia. Pilot Size Thread Size

SC250A-01A-82 SC250A-01A-90 SC250A-01A-100 SC250A-01A-120 5/16 40 1/4-28
SC250A-01B-82 SC250A-01B-90 SC250A-01B-100 SC250A-01B-120 5/16 30 1/4-28
SC250A-01C-82 SC250A-01C-90 SC250A-01C-100 SC250A-01C-120 5/16 21 1/4-28
SC250A-01D-82 SC250A-01D-90 SC250A-01D-100 SC250A-01D-120 5/16 10 1/4-28
SC250A-01E-82 SC250A-01E-90 SC250A-01E-100 SC250A-01E-120 5/16 3/32 1/4-28
SC250A-01F-82 SC250A-01F-90 SC250A-01F-100 SC250A-01F-120 5/16 1/8 1/4-28
SC250A-01G-82 SC250A-01G-90 SC250A-01G-100 SC250A-01G-120 5/16 5/32 1/4-28
SC250A-01H-82 SC250A-01H-90 SC250A-01H-100 SC250A-01H-120 5/16 3/16 1/4-28
SC250A-1A-82 SC250A-1A-90 SC250A-1A-100 SC250A-1A-120 3/8 40 1/4-28
SC250A-1B-82 SC250A-1B-90 SC250A-1B-100 SC250A-1B-120 3/8 30 1/4-28
SC250A-1C-82 SC250A-1C-90 SC250A-1C-100 SC250A-1C-120 3/8 21 1/4-28
SC250A-1D-82 SC250A-1D-90 SC250A-1D-100 SC250A-1D-120 3/8 10 1/4-28
SC250A-1E-82 SC250A-1E-90 SC250A-1E-100 SC250A-1E-120 3/8 3/32 1/4-28
SC250A-1F-82 SC250A-1F-90 SC250A-1F-100 SC250A-1F-120 3/8 1/8 1/4-28
SC250A-1G-82 SC250A-1G-90 SC250A-1G-100 SC250A-1G-120 3/8 5/32 1/4-28
SC250A-1H-82 SC250A-1H-90 SC250A-1H-100 SC250A-1H-120 3/8 3/16 1/4-28
SC250A-2A-82 SC250A-2A-90 SC250A-2A-100 SC250A-2A-120 7/16 40 1/4-28
SC250A-2B-82 SC250A-2B-90 SC250A-2B-100 SC250A-2B-120 7/16 30 1/4-28
SC250A-2C-82 SC250A-2C-90 SC250A-2C-100 SC250A-2C-120 7/16 21 1/4-28
SC250A-2D-82 SC250A-2D-90 SC250A-2D-100 SC250A-2D-120 7/16 10 1/4-28
SC250A-2E-82 SC250A-2E-90 SC250A-2E-100 SC250A-2E-120 7/16 3/32 1/4-28
SC250A-2F-82 SC250A-2F-90 SC250A-2F-100 SC250A-2F-120 7/16 1/8 1/4-28
SC250A-2G-82 SC250A-2G-90 SC250A-2G-100 SC250A-2G-120 7/16 5/32 1/4-28
SC250A-2H-82 SC250A-2H-90 SC250A-2H-100 SC250A-2H-120 7/16 3/16 1/4-28
SC250A-2J-82 SC250A-2J-90 SC250A-2J-100 SC250A-2J-120 7/16 1/4 1/4-28
SC250A-3A-82 SC250A-3A-90 SC250A-3A-100 SC250A-3A-120 1/2 40 1/4-28
SC250A-3B-82 SC250A-3B-90 SC250A-3B-100 SC250A-3B-120 1/2 30 1/4-28
SC250A-3C-82 SC250A-3C-90 SC250A-3C-100 SC250A-3C-120 1/2 21 1/4-28
SC250A-3D-82 SC250A-3D-90 SC250A-3D-100 SC250A-3D-120 1/2 10 1/4-28
SC250A-3E-82 SC250A-3E-90 SC250A-3E-100 SC250A-3E-120 1/2 3/32 1/4-28
SC250A-3F-82 SC250A-3F-90 SC250A-3F-100 SC250A-3F-120 1/2 1/8 1/4-28
SC250A-3G-82 SC250A-3G-90 SC250A-3G-100 SC250A-3G-120 1/2 5/32 1/4-28
SC250A-3H-82 SC250A-3H-90 SC250A-3H-100 SC250A-3H-120 1/2 3/16 1/4-28
SC250A-3J-82 SC250A-3J-90 SC250A-3J-100 SC250A-3J-120 1/2 1/4 1/4-28
SC250A-4A-82 SC250A-4A-90 SC250A-4A-100 SC250A-4A-120 5/8 30 1/4-28
SC250A-4B-82 SC250A-4B-90 SC250A-4B-100 SC250A-4B-120 5/8 21 1/4-28
SC250A-4C-82 SC250A-4C-90 SC250A-4C-100 SC250A-4C-120 5/8 10 1/4-28
SC250A-4D-82 SC250A-4D-90 SC250A-4D-100 SC250A-4D-120 5/8 1/8 1/4-28
SC250A-4E-82 SC250A-4E-90 SC250A-4E-100 SC250A-4E-120 5/8 5/32 1/4-28
SC250A-4F-82 SC250A-4F-90 SC250A-4F-100 SC250A-4F-120 5/8 3/16 1/4-28
SC250A-4G-82 SC250A-4G-90 SC250A-4G-100 SC250A-4G-120 5/8 1/4 1/4-28
SC250A-4H-82 SC250A-4H-90 SC250A-4H-100 SC250A-4H-120 5/8 F 1/4-28
SC250A-4J-82 SC250A-4J-90 SC250A-4J-100 SC250A-4J-120 5/8 5/16 1/4-28
