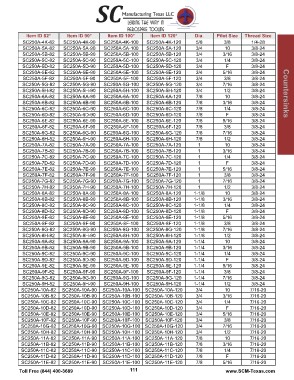

Page 113 - SCMT 2015 FULL Catalog

Item ID 82° Item ID 90° Item ID 100° Item ID 120° Dia. Pilot Size Thread Size Countersinks

SC250A-4K-82 SC250A-4K-90 SC250A-4K-100 SC250A-4K-120 5/8 3/8 1/4-28
SC250A-5A-82 SC250A-5A-90 SC250A-5A-100 SC250A-5A-120 3/4 10 3/8-24
SC250A-5B-82 SC250A-5B-90 SC250A-5B-100 SC250A-5B-120 3/4 3/16 3/8-24
SC250A-5C-82 SC250A-5C-90 SC250A-5C-100 SC250A-5C-120 3/4 1/4 3/8-24
SC250A-5D-82 SC250A-5D-90 SC250A-5D-100 SC250A-5D-120 3/4 F 3/8-24
SC250A-5E-82 SC250A-5E-90 SC250A-5E-100 SC250A-5E-120 3/4 5/16 3/8-24
SC250A-5F-82 SC250A-5F-90 SC250A-5F-100 SC250A-5F-120 3/4 3/8 3/8-24
SC250A-5G-82 SC250A-5G-90 SC250A-5G-100 SC250A-5G-120 3/4 7/16 3/8-24
SC250A-5H-82 SC250A-5H-90 SC250A-5H-100 SC250A-5H-120 3/4 1/2 3/8-24
SC250A-6A-82 SC250A-6A-90 SC250A-6A-100 SC250A-6A-120 7/8 10 3/8-24
SC250A-6B-82 SC250A-6B-90 SC250A-6B-100 SC250A-6B-120 7/8 3/16 3/8-24
SC250A-6C-82 SC250A-6C-90 SC250A-6C-100 SC250A-6C-120 7/8 1/4 3/8-24
SC250A-6D-82 SC250A-6D-90 SC250A-6D-100 SC250A-6D-120 7/8 F 3/8-24
SC250A-6E-82 SC250A-6E-90 SC250A-6E-100 SC250A-6E-120 7/8 5/16 3/8-24
SC250A-6F-82 SC250A-6F-90 SC250A-6F-100 SC250A-6F-120 7/8 3/8 3/8-24
SC250A-6G-82 SC250A-6G-90 SC250A-6G-100 SC250A-6G-120 7/8 7/16 3/8-24
SC250A-6H-82 SC250A-6H-90 SC250A-6H-100 SC250A-6H-120 7/8 1/2 3/8-24
SC250A-7A-82 SC250A-7A-90 SC250A-7A-100 SC250A-7A-120 1 10 3/8-24
SC250A-7B-82 SC250A-7B-90 SC250A-7B-100 SC250A-7B-120 1 3/16 3/8-24
SC250A-7C-82 SC250A-7C-90 SC250A-7C-100 SC250A-7C-120 1 1/4 3/8-24
SC250A-7D-82 SC250A-7D-90 SC250A-7D-100 SC250A-7D-120 1 F 3/8-24
SC250A-7E-82 SC250A-7E-90 SC250A-7E-100 SC250A-7E-120 1 5/16 3/8-24
SC250A-7F-82 SC250A-7F-90 SC250A-7F-100 SC250A-7F-120 1 3/8 3/8-24
SC250A-7G-82 SC250A-7G-90 SC250A-7G-100 SC250A-7G-120 1 7/16 3/8-24
SC250A-7H-82 SC250A-7H-90 SC250A-7H-100 SC250A-7H-120 1 1/2 3/8-24
SC250A-8A-82 SC250A-8A-90 SC250A-8A-100 SC250A-8A-120 1-1/8 10 3/8-24
SC250A-8B-82 SC250A-8B-90 SC250A-8B-100 SC250A-8B-120 1-1/8 3/16 3/8-24
SC250A-8C-82 SC250A-8C-90 SC250A-8C-100 SC250A-8C-120 1-1/8 1/4 3/8-24
SC250A-8D-82 SC250A-8D-90 SC250A-8D-100 SC250A-8D-120 1-1/8 F 3/8-24
SC250A-8E-82 SC250A-8E-90 SC250A-8E-100 SC250A-8E-120 1-1/8 5/16 3/8-24
SC250A-8F-82 SC250A-8F-90 SC250A-8F-100 SC250A-8F-120 1-1/8 3/8 3/8-24
SC250A-8G-82 SC250A-8G-90 SC250A-8G-100 SC250A-8G-120 1-1/8 7/16 3/8-24
SC250A-8H-82 SC250A-8H-90 SC250A-8H-100 SC250A-8H-120 1-1/8 1/2 3/8-24
SC250A-9A-82 SC250A-9A-90 SC250A-9A-100 SC250A-9A-120 1-1/4 10 3/8-24
SC250A-9B-82 SC250A-9B-90 SC250A-9B-100 SC250A-9B-120 1-1/4 3/16 3/8-24
SC250A-9C-82 SC250A-9C-90 SC250A-9C-100 SC250A-9C-120 1-1/4 1/4 3/8-24
SC250A-9D-82 SC250A-9D-90 SC250A-9D-100 SC250A-9D-120 1-1/4 F 3/8-24
SC250A-9E-82 SC250A-9E-90 SC250A-9E-100 SC250A-9E-120 1-1/4 5/16 3/8-24
SC250A-9F-82 SC250A-9F-90 SC250A-9F-100 SC250A-9F-120 1-1/4 3/8 3/8-24
SC250A-9G-82 SC250A-9G-90 SC250A-9G-100 SC250A-9G-120 1-1/4 7/16 3/8-24
SC250A-9H-82 SC250A-9H-90 SC250A-9H-100 SC250A-9H-120 1-1/4 1/2 3/8-24
SC250A-10A-82 SC250A-10A-90 SC250A-10A-100 SC250A-10A-120 3/4 10 7/16-20
SC250A-10B-82 SC250A-10B-90 SC250A-10B-100 SC250A-10B-120 3/4 3/16 7/16-20
SC250A-10C-82 SC250A-10C-90 SC250A-10C-100 SC250A-10C-120 3/4 1/4 7/16-20
SC250A-10D-82 SC250A-10D-90 SC250A-10D-100 SC250A-10D-120 3/4 F 7/16-20
SC250A-10E-82 SC250A-10E-90 SC250A-10E-100 SC250A-10E-120 3/4 5/16 7/16-20
SC250A-10F-82 SC250A-10F-90 SC250A-10F-100 SC250A-10F-120 3/4 3/8 7/16-20
SC250A-10G-82 SC250A-10G-90 SC250A-10G-100 SC250A-10G-120 3/4 7/16 7/16-20
SC250A-10H-82 SC250A-10H-90 SC250A-10H-100 SC250A-10H-120 3/4 1/2 7/16-20
SC250A-11A-82 SC250A-11A-90 SC250A-11A-100 SC250A-11A-120 7/8 10 7/16-20
SC250A-11B-82 SC250A-11B-90 SC250A-11B-100 SC250A-11B-120 7/8 3/16 7/16-20
SC250A-11C-82 SC250A-11C-90 SC250A-11C-100 SC250A-11C-120 7/8 1/4 7/16-20
SC250A-11D-82 SC250A-11D-90 SC250A-11D-100 SC250A-11D-120 7/8 F 7/16-20
SC250A-11E-82 SC250A-11E-90 SC250A-11E-100 SC250A-11E-120 7/8 5/16 7/16-20
