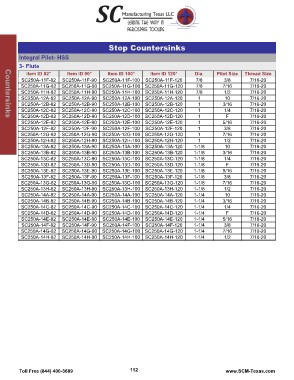

Page 114 - SCMT 2015 FULL Catalog

Countersinks

Stop Countersinks

Integral Pilot- HSS

Countersinks 3- Flute

Item ID 82° Item ID 90° Item ID 100° Item ID 120° Dia. Pilot Size Thread Size

SC250A-11F-82 SC250A-11F-90 SC250A-11F-100 SC250A-11F-120 7/8 3/8 7/16-20
SC250A-11G-82 SC250A-11G-90 SC250A-11G-100 SC250A-11G-120 7/8 7/16 7/16-20
SC250A-11H-82 SC250A-11H-90 SC250A-11H-100 SC250A-11H-120 7/8 1/2 7/16-20
SC250A-12A-82 SC250A-12A-90 SC250A-12A-100 SC250A-12A-120 1 10 7/16-20
SC250A-12B-82 SC250A-12B-90 SC250A-12B-100 SC250A-12B-120 1 3/16 7/16-20
SC250A-12C-82 SC250A-12C-90 SC250A-12C-100 SC250A-12C-120 1 1/4 7/16-20
SC250A-12D-82 SC250A-12D-90 SC250A-12D-100 SC250A-12D-120 1 7/16-20
SC250A-12E-82 SC250A-12E-90 SC250A-12E-100 SC250A-12E-120 1 F 7/16-20
SC250A-12F-82 SC250A-12F-90 SC250A-12F-100 SC250A-12F-120 1 5/16 7/16-20
SC250A-12G-82 SC250A-12G-90 SC250A-12G-100 SC250A-12G-120 1 3/8 7/16-20
SC250A-12H-82 SC250A-12H-90 SC250A-12H-100 SC250A-12H-120 1 7/16 7/16-20
SC250A-13A-82 SC250A-13A-90 SC250A-13A-100 SC250A-13A-120 1-1/8 1/2 7/16-20
SC250A-13B-82 SC250A-13B-90 SC250A-13B-100 SC250A-13B-120 1-1/8 10 7/16-20
SC250A-13C-82 SC250A-13C-90 SC250A-13C-100 SC250A-13C-120 1-1/8 3/16 7/16-20
SC250A-13D-82 SC250A-13D-90 SC250A-13D-100 SC250A-13D-120 1-1/8 1/4 7/16-20
SC250A-13E-82 SC250A-13E-90 SC250A-13E-100 SC250A-13E-120 1-1/8 7/16-20
SC250A-13F-82 SC250A-13F-90 SC250A-13F-100 SC250A-13F-120 1-1/8 F 7/16-20
SC250A-13G-82 SC250A-13G-90 SC250A-13G-100 SC250A-13G-120 1-1/8 5/16 7/16-20
SC250A-13H-82 SC250A-13H-90 SC250A-13H-100 SC250A-13H-120 1-1/8 3/8 7/16-20
SC250A-14A-82 SC250A-14A-90 SC250A-14A-100 SC250A-14A-120 1-1/4 7/16 7/16-20
SC250A-14B-82 SC250A-14B-90 SC250A-14B-100 SC250A-14B-120 1-1/4 1/2 7/16-20
SC250A-14C-82 SC250A-14C-90 SC250A-14C-100 SC250A-14C-120 1-1/4 10 7/16-20
SC250A-14D-82 SC250A-14D-90 SC250A-14D-100 SC250A-14D-120 1-1/4 3/16 7/16-20
SC250A-14E-82 SC250A-14E-90 SC250A-14E-100 SC250A-14E-120 1-1/4 1/4 7/16-20
SC250A-14F-82 SC250A-14F-90 SC250A-14F-100 SC250A-14F-120 1-1/4 7/16-20
SC250A-14G-82 SC250A-14G-90 SC250A-14G-100 SC250A-14G-120 1-1/4 F 7/16-20
SC250A-14H-82 SC250A-14H-90 SC250A-14H-100 SC250A-14H-120 1-1/4 5/16 7/16-20
3/8
7/16
1/2

Toll Free (844) 400-3689 112 www.SCM-Texas.com
