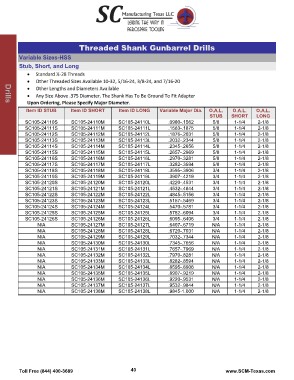

Page 42 - SCMT 2015 FULL Catalog
P. 42
Drills
Threaded Shank Gunbarrel Drills
Variable Sizes-HSS
Stub, Short, and Long
Drills
Item ID STUB Item ID SHORT Item ID LONG Variable Major Dia. O.A.L. O.A.L. O.A.L.
STUB SHORT LONG
SC105-24110S SC105-24110M SC105-24110L .0980-.1562 2-1/8
SC105-24111S SC105-24111M SC105-24111L .1563-.1875 5/8 1-1/4 2-1/8
SC105-24112S SC105-24112M SC105-24112L .1876-.2031 5/8 1-1/4 2-1/8
SC105-24113S SC105-24113M SC105-24113L .2032-.2344 5/8 1-1/4 2-1/8
SC105-24114S SC105-24114M SC105-24114L .2345-.2656 5/8 1-1/4 2-1/8
SC105-24115S SC105-24115M SC105-24115L .2657-.2969 5/8 1-1/4 2-1/8
SC105-24116S SC105-24116M SC105-24116L .2970-.3281 5/8 1-1/4 2-1/8
SC105-24117S SC105-24117M SC105-24117L .3282-.3594 5/8 1-1/4 2-1/8
SC105-24118S SC105-24118M SC105-24118L .3595-.3906 5/8 1-1/4 2-1/8
SC105-24119S SC105-24119M SC105-24119L .3907-.4219 3/4 1-1/4 2-1/8
SC105-24120S SC105-24120M SC105-24120L .4220-.4531 3/4 1-1/4 2-1/8
SC105-24121S SC105-24121M SC105-24121L .4532-.4844 3/4 1-1/4 2-1/8
SC105-24122S SC105-24122M SC105-24122L .4845-.5156 3/4 1-1/4 2-1/8
SC105-24123S SC105-24123M SC105-24123L .5157-.5469 3/4 1-1/4 2-1/8
SC105-24124S SC105-24124M SC105-24124L .5470-.5781 3/4 1-1/4 2-1/8
SC105-24125S SC105-24125M SC105-24125L .5782-.6094 3/4 1-1/4 2-1/8
SC105-24126S SC105-24126M SC105-24126L .6095-.6406 3/4 1-1/4 2-1/8
SC105-24127M SC105-24127L .6407-.6719 3/4 1-1/4 2-1/8
N/A SC105-24128M SC105-24128L .6720-.7031 N/A 1-1/4 2-1/8
N/A SC105-24129M SC105-24129L .7032-.7344 N/A 1-1/4 2-1/8
N/A SC105-24130M SC105-24130L .7345-.7656 N/A 1-1/4 2-1/8
N/A SC105-24131M SC105-24131L .7657-.7969 N/A 1-1/4 2-1/8
N/A SC105-24132M SC105-24132L .7970-.8281 N/A 1-1/4 2-1/8
N/A SC105-24133M SC105-24133L .8282-.8594 N/A 1-1/4 2-1/8
N/A SC105-24134M SC105-24134L .8595-.8906 N/A 1-1/4 2-1/8
N/A SC105-24135M SC105-24135L .8907-.9219 N/A 1-1/4 2-1/8
N/A SC105-24136M SC105-24136L .9220-.9531 N/A 1-1/4 2-1/8
N/A SC105-24137M SC105-24137L .9532-.9844 N/A 1-1/4 2-1/8
N/A SC105-24138M SC105-24138L .9845-1.000 N/A 1-1/4 2-1/8
N/A N/A 1-1/4
