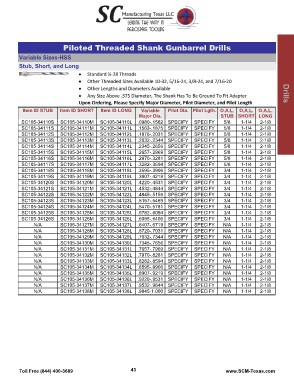

P. 45
Drills
Piloted Threaded Shank Gunbarrel Drills
Variable Sizes-HSS
Stub, Short, and Long
Drills
Item ID STUB Item ID SHORT Item ID LONG Variable Pilot Dia. Pilot Lgth. O.A.L. O.A.L. O.A.L.
Major Dia. STUB SHORT LONG
SC105-34110S SC105-34110M SC105-34110L .0980-.1562 SPECIFY SPECIFY 2-1/8
SC105-34111S SC105-34111M SC105-34111L .1563-.1875 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34112S SC105-34112M SC105-34112L .1876-.2031 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34113S SC105-34113M SC105-34113L .2032-.2344 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34114S SC105-34114M SC105-34114L .2345-.2656 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34115S SC105-34115M SC105-34115L .2657-.2969 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34116S SC105-34116M SC105-34116L .2970-.3281 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34117S SC105-34117M SC105-34117L .3282-.3594 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34118S SC105-34118M SC105-34118L .3595-.3906 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC105-34119S SC105-34119M SC105-34119L .3907-.4219 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34120S SC105-34120M SC105-34120L .4220-.4531 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34121S SC105-34121M SC105-34121L .4532-.4844 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34122S SC105-34122M SC105-34122L .4845-.5156 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34123S SC105-34123M SC105-34123L .5157-.5469 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34124S SC105-34124M SC105-34124L .5470-.5781 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34125S SC105-34125M SC105-34125L .5782-.6094 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34126S SC105-34126M SC105-34126L .6095-.6406 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC105-34127M SC105-34127L .6407-.6719 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
N/A SC105-34128M SC105-34128L .6720-.7031 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34129M SC105-34129L .7032-.7344 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34130M SC105-34130L .7345-.7656 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34131M SC105-34131L .7657-.7969 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34132M SC105-34132L .7970-.8281 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34133M SC105-34133L .8282-.8594 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34134M SC105-34134L .8595-.8906 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34135M SC105-34135L .8907-.9219 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34136M SC105-34136L .9220-.9531 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34137M SC105-34137L .9532-.9844 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A SC105-34138M SC105-34138L .9845-1.000 SPECIFY SPECIFY N/A 1-1/4 2-1/8
N/A N/A 1-1/4
