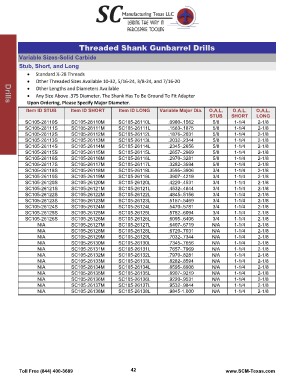

Page 44 - SCMT 2015 FULL Catalog
P. 44
Drills
Threaded Shank Gunbarrel Drills
Variable Sizes-Solid Carbide
Stub, Short, and Long
Drills
Item ID STUB Item ID SHORT Item ID LONG Variable Major Dia. O.A.L. O.A.L. O.A.L.
STUB SHORT LONG
SC105-26110S SC105-26110M SC105-26110L .0980-.1562 2-1/8
SC105-26111S SC105-26111M SC105-26111L .1563-.1875 5/8 1-1/4 2-1/8
SC105-26112S SC105-26112M SC105-26112L .1876-.2031 5/8 1-1/4 2-1/8
SC105-26113S SC105-26113M SC105-26113L .2032-.2344 5/8 1-1/4 2-1/8
SC105-26114S SC105-26114M SC105-26114L .2345-.2656 5/8 1-1/4 2-1/8
SC105-26115S SC105-26115M SC105-26115L .2657-.2969 5/8 1-1/4 2-1/8
SC105-26116S SC105-26116M SC105-26116L .2970-.3281 5/8 1-1/4 2-1/8
SC105-26117S SC105-26117M SC105-26117L .3282-.3594 5/8 1-1/4 2-1/8
SC105-26118S SC105-26118M SC105-26118L .3595-.3906 5/8 1-1/4 2-1/8
SC105-26119S SC105-26119M SC105-26119L .3907-.4219 3/4 1-1/4 2-1/8
SC105-26120S SC105-26120M SC105-26120L .4220-.4531 3/4 1-1/4 2-1/8
SC105-26121S SC105-26121M SC105-26121L .4532-.4844 3/4 1-1/4 2-1/8
SC105-26122S SC105-26122M SC105-26122L .4845-.5156 3/4 1-1/4 2-1/8
SC105-26123S SC105-26123M SC105-26123L .5157-.5469 3/4 1-1/4 2-1/8
SC105-26124S SC105-26124M SC105-26124L .5470-.5781 3/4 1-1/4 2-1/8
SC105-26125S SC105-26125M SC105-26125L .5782-.6094 3/4 1-1/4 2-1/8
SC105-26126S SC105-26126M SC105-26126L .6095-.6406 3/4 1-1/4 2-1/8
SC105-26127M SC105-26127L .6407-.6719 3/4 1-1/4 2-1/8
N/A SC105-26128M SC105-26128L .6720-.7031 N/A 1-1/4 2-1/8
N/A SC105-26129M SC105-26129L .7032-.7344 N/A 1-1/4 2-1/8
N/A SC105-26130M SC105-26130L .7345-.7656 N/A 1-1/4 2-1/8
N/A SC105-26131M SC105-26131L .7657-.7969 N/A 1-1/4 2-1/8
N/A SC105-26132M SC105-26132L .7970-.8281 N/A 1-1/4 2-1/8
N/A SC105-26133M SC105-26133L .8282-.8594 N/A 1-1/4 2-1/8
N/A SC105-26134M SC105-26134L .8595-.8906 N/A 1-1/4 2-1/8
N/A SC105-26135M SC105-26135L .8907-.9219 N/A 1-1/4 2-1/8
N/A SC105-26136M SC105-26136L .9220-.9531 N/A 1-1/4 2-1/8
N/A SC105-26137M SC105-26137L .9532-.9844 N/A 1-1/4 2-1/8
N/A SC105-26138M SC105-26138L .9845-1.000 N/A 1-1/4 2-1/8
N/A N/A 1-1/4
