Drills

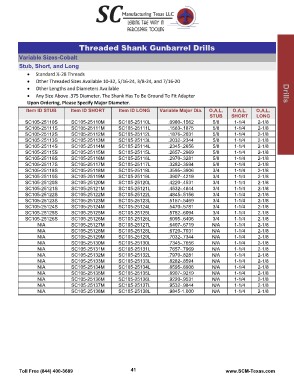

Threaded Shank Gunbarrel Drills
Variable Sizes-Cobalt
Stub, Short, and Long
Drills
Item ID STUB Item ID SHORT Item ID LONG Variable Major Dia. O.A.L. O.A.L. O.A.L.
STUB SHORT LONG
SC105-25110S SC105-25110M SC105-25110L .0980-.1562 2-1/8
SC105-25111S SC105-25111M SC105-25111L .1563-.1875 5/8 1-1/4 2-1/8
SC105-25112S SC105-25112M SC105-25112L .1876-.2031 5/8 1-1/4 2-1/8
SC105-25113S SC105-25113M SC105-25113L .2032-.2344 5/8 1-1/4 2-1/8
SC105-25114S SC105-25114M SC105-25114L .2345-.2656 5/8 1-1/4 2-1/8
SC105-25115S SC105-25115M SC105-25115L .2657-.2969 5/8 1-1/4 2-1/8
SC105-25116S SC105-25116M SC105-25116L .2970-.3281 5/8 1-1/4 2-1/8
SC105-25117S SC105-25117M SC105-25117L .3282-.3594 5/8 1-1/4 2-1/8
SC105-25118S SC105-25118M SC105-25118L .3595-.3906 5/8 1-1/4 2-1/8
SC105-25119S SC105-25119M SC105-25119L .3907-.4219 3/4 1-1/4 2-1/8
SC105-25120S SC105-25120M SC105-25120L .4220-.4531 3/4 1-1/4 2-1/8
SC105-25121S SC105-25121M SC105-25121L .4532-.4844 3/4 1-1/4 2-1/8
SC105-25122S SC105-25122M SC105-25122L .4845-.5156 3/4 1-1/4 2-1/8
SC105-25123S SC105-25123M SC105-25123L .5157-.5469 3/4 1-1/4 2-1/8
SC105-25124S SC105-25124M SC105-25124L .5470-.5781 3/4 1-1/4 2-1/8
SC105-25125S SC105-25125M SC105-25125L .5782-.6094 3/4 1-1/4 2-1/8
SC105-25126S SC105-25126M SC105-25126L .6095-.6406 3/4 1-1/4 2-1/8
SC105-25127M SC105-25127L .6407-.6719 3/4 1-1/4 2-1/8
N/A SC105-25128M SC105-25128L .6720-.7031 N/A 1-1/4 2-1/8
N/A SC105-25129M SC105-25129L .7032-.7344 N/A 1-1/4 2-1/8
N/A SC105-25130M SC105-25130L .7345-.7656 N/A 1-1/4 2-1/8
N/A SC105-25131M SC105-25131L .7657-.7969 N/A 1-1/4 2-1/8
N/A SC105-25132M SC105-25132L .7970-.8281 N/A 1-1/4 2-1/8
N/A SC105-25133M SC105-25133L .8282-.8594 N/A 1-1/4 2-1/8
N/A SC105-25134M SC105-25134L .8595-.8906 N/A 1-1/4 2-1/8
N/A SC105-25135M SC105-25135L .8907-.9219 N/A 1-1/4 2-1/8
N/A SC105-25136M SC105-25136L .9220-.9531 N/A 1-1/4 2-1/8
N/A SC105-25137M SC105-25137L .9532-.9844 N/A 1-1/4 2-1/8
N/A SC105-25138M SC105-25138L .9845-1.000 N/A 1-1/4 2-1/8
N/A N/A 1-1/4
