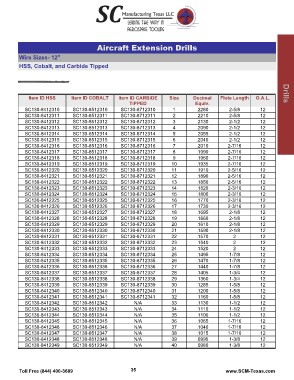

Page 37 - SCMT 2015 FULL Catalog
P. 37
Drills
Aircraft Extension Drills
Wire Sizes- 12"
HSS, Cobalt, and Carbide Tipped
Item ID HSS Item ID COBALT Item ID CARBIDE Size Decimal Flute Length O.A.L. Drills
TIPPED Equiv.
SC130-8412310 SC130-8512310 1 .2280 2-5/8 12
SC130-8412311 SC130-8512311 SC130-8712310 2 .2210 2-5/8 12
SC130-8412312 SC130-8512312 SC130-8712311 3 .2130 2-1/2 12
SC130-8412313 SC130-8512313 SC130-8712312 4 .2090 2-1/2 12
SC130-8412314 SC130-8512314 SC130-8712313 5 .2055 2-1/2 12
SC130-8412315 SC130-8512315 SC130-8712314 6 .2040 2-1/2 12
SC130-8412316 SC130-8512316 SC130-8712315 7 .2010 2-7/16 12
SC130-8412317 SC130-8512317 SC130-8712316 8 .1990 2-7/16 12
SC130-8412318 SC130-8512318 SC130-8712317 9 .1960 2-7/16 12
SC130-8412319 SC130-8512319 SC130-8712318 10 .1935 2-7/16 12
SC130-8412320 SC130-8512320 SC130-8712319 11 .1910 2-5/16 12
SC130-8412321 SC130-8512321 SC130-8712320 12 .1890 2-5/16 12
SC130-8412322 SC130-8512322 SC130-8712321 13 .1850 2-5/16 12
SC130-8412323 SC130-8512323 SC130-8712322 14 .1820 2-3/16 12
SC130-8412324 SC130-8512324 SC130-8712323 15 .1800 2-3/16 12
SC130-8412325 SC130-8512325 SC130-8712324 16 .1770 2-3/16 12
SC130-8412326 SC130-8512326 SC130-8712325 17 .1730 2-3/16 12
SC130-8412327 SC130-8512327 SC130-8712326 18 .1695 2-1/8 12
SC130-8412328 SC130-8512328 SC130-8712327 19 .1660 2-1/8 12
SC130-8412329 SC130-8512329 SC130-8712328 20 .1610 2-1/8 12
SC130-8412330 SC130-8512330 SC130-8712329 21 .1590 2-1/8 12
SC130-8412331 SC130-8512331 SC130-8712330 22 .1570 12
SC130-8412332 SC130-8512332 SC130-8712331 23 .1540 2 12
SC130-8412333 SC130-8512333 SC130-8712332 24 .1520 2 12
SC130-8412334 SC130-8512334 SC130-8712333 25 .1495 2 12
SC130-8412335 SC130-8512335 SC130-8712334 26 .1470 1-7/8 12
SC130-8412336 SC130-8512336 SC130-8712335 27 .1440 1-7/8 12
SC130-8412337 SC130-8512337 SC130-8712336 28 .1405 1-7/8 12
SC130-8412338 SC130-8512338 SC130-8712337 29 .1360 1-3/4 12
SC130-8412339 SC130-8512339 SC130-8712338 30 .1285 1-3/4 12
SC130-8412340 SC130-8512340 SC130-8712339 31 .1200 1-5/8 12
SC130-8412341 SC130-8512341 SC130-8712340 32 .1160 1-5/8 12
SC130-8412342 SC130-8512342 SC130-8712341 33 .1130 1-5/8 12
SC130-8412343 SC130-8512343 34 .1110 1-1/2 12
SC130-8412344 SC130-8512344 N/A 35 .1100 1-1/2 12
SC130-8412345 SC130-8512345 N/A 36 .1065 1-1/2 12
SC130-8412346 SC130-8512346 N/A 37 .1040 1-7/16 12
SC130-8412347 SC130-8512347 N/A 38 .1015 1-7/16 12
SC130-8412348 SC130-8512348 N/A 39 .0995 1-7/16 12
SC130-8412349 SC130-8512349 N/A 40 .0980 1-3/8 12
N/A 1-3/8
N/A
Toll Free (844) 400-3689 35 www.SCM-Texas.com
