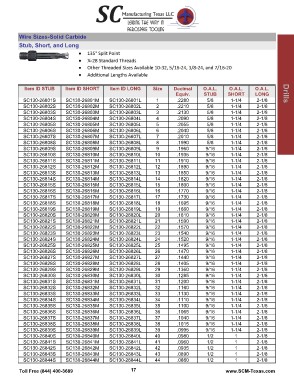

Page 19 - SCMT 2015 FULL Catalog

Wire Sizes-Solid Carbide
Stub, Short, and Long

Item ID STUB Item ID SHORT Item ID LONG Size Decimal O.A.L. O.A.L. O.A.L. Drills
Equiv. STUB SHORT LONG
SC130-26801S SC130-26801M SC130-26801L 1 .2280 2-1/8
SC130-26802S SC130-26802M SC130-26802L 2 .2210 5/8 1-1/4 2-1/8
SC130-26803S SC130-26803M SC130-26803L 3 .2130 5/8 1-1/4 2-1/8
SC130-26804S SC130-26804M SC130-26804L 4 .2090 5/8 1-1/4 2-1/8
SC130-26805S SC130-26805M SC130-26805L 5 .2055 5/8 1-1/4 2-1/8
SC130-26806S SC130-26806M SC130-26806L 6 .2040 5/8 1-1/4 2-1/8
SC130-26807S SC130-26807M SC130-26807L 7 .2010 5/8 1-1/4 2-1/8
SC130-26808S SC130-26808M SC130-26808L 8 .1990 5/8 1-1/4 2-1/8
SC130-26809S SC130-26809M SC130-26809L 9 .1960 5/8 1-1/4 2-1/8
SC130-26810S SC130-26810M SC130-26810L 10 .1935 9/16 1-1/4 2-1/8
SC130-26811S SC130-26811M SC130-26811L 11 .1910 9/16 1-1/4 2-1/8
SC130-26812S SC130-26812M SC130-26812L 12 .1890 9/16 1-1/4 2-1/8
SC130-26813S SC130-26813M SC130-26813L 13 .1850 9/16 1-1/4 2-1/8
SC130-26814S SC130-26814M SC130-26814L 14 .1820 9/16 1-1/4 2-1/8
SC130-26815S SC130-26815M SC130-26815L 15 .1800 9/16 1-1/4 2-1/8
SC130-26816S SC130-26816M SC130-26816L 16 .1770 9/16 1-1/4 2-1/8
SC130-26817S SC130-26817M SC130-26817L 17 .1730 9/16 1-1/4 2-1/8
SC130-26818S SC130-26818M SC130-26818L 18 .1695 9/16 1-1/4 2-1/8
SC130-26819S SC130-26819M SC130-26819L 19 .1660 9/16 1-1/4 2-1/8
SC130-26820S SC130-26820M SC130-26820L 20 .1610 9/16 1-1/4 2-1/8
SC130-26821S SC130-26821M SC130-26821L 21 .1590 9/16 1-1/4 2-1/8
SC130-26822S SC130-26822M SC130-26822L 22 .1570 9/16 1-1/4 2-1/8
SC130-26823S SC130-26823M SC130-26823L 23 .1540 9/16 1-1/4 2-1/8
SC130-26824S SC130-26824M SC130-26824L 24 .1520 9/16 1-1/4 2-1/8
SC130-26825S SC130-26825M SC130-26825L 25 .1495 9/16 1-1/4 2-1/8
SC130-26826S SC130-26826M SC130-26826L 26 .1470 9/16 1-1/4 2-1/8
SC130-26827S SC130-26827M SC130-26827L 27 .1440 9/16 1-1/4 2-1/8
SC130-26828S SC130-26828M SC130-26828L 28 .1405 9/16 1-1/4 2-1/8
SC130-26829S SC130-26829M SC130-26829L 29 .1360 9/16 1-1/4 2-1/8
SC130-26830S SC130-26830M SC130-26830L 30 .1285 9/16 1-1/4 2-1/8
SC130-26831S SC130-26831M SC130-26831L 31 .1200 9/16 1-1/4 2-1/8
SC130-26832S SC130-26832M SC130-26832L 32 .1160 9/16 1-1/4 2-1/8
SC130-26833S SC130-26833M SC130-26833L 33 .1130 9/16 1-1/4 2-1/8
SC130-26834S SC130-26834M SC130-26834L 34 .1110 9/16 1-1/4 2-1/8
SC130-26835S SC130-26835M SC130-26835L 35 .1100 9/16 1-1/4 2-1/8
SC130-26836S SC130-26836M SC130-26836L 36 .1065 9/16 1-1/4 2-1/8
SC130-26837S SC130-26837M SC130-26837L 37 .1040 9/16 1-1/4 2-1/8
SC130-26838S SC130-26838M SC130-26838L 38 .1015 9/16 1-1/4 2-1/8
SC130-26839S SC130-26839M SC130-26839L 39 .0995 9/16 1-1/4 2-1/8
SC130-26840S SC130-26840M SC130-26840L 40 .0980 9/16 1-1/4 2-1/8
SC130-26841S SC130-26841M SC130-26841L 41 .0960 1/2 2-1/8
SC130-26842S SC130-26842M SC130-26842L 42 .0935 1/2 1 2-1/8
SC130-26843S SC130-26843M SC130-26843L 43 .0890 1/2 1 2-1/8
SC130-26844S SC130-26844M SC130-26844L 44 .0860 1/2 1 2-1/8
1/2 1
17 1

Toll Free (844) 400-3689 www.SCM-Texas.com
