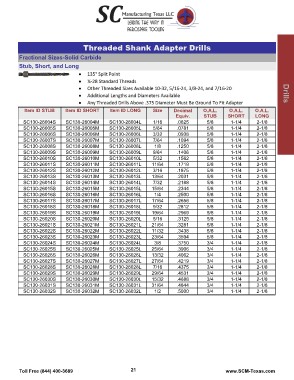

Page 23 - SCMT 2015 FULL Catalog

Drills

Threaded Shank Adapter Drills

Fractional Sizes-Solid Carbide
Stub, Short, and Long

Drills

Item ID STUB Item ID SHORT Item ID LONG Size Decimal O.A.L. O.A.L. O.A.L.
Equiv. STUB SHORT LONG
SC130-26004S SC130-26004M SC130-26004L 1/16 .0625 2-1/8
SC130-26005S SC130-26005M SC130-26005L 5/64 .0781 5/8 1-1/4 2-1/8
SC130-26006S SC130-26006M SC130-26006L 3/32 .0938 5/8 1-1/4 2-1/8
SC130-26007S SC130-26007M SC130-26007L 7/64 .1094 5/8 1-1/4 2-1/8
SC130-26008S SC130-26008M SC130-26008L 1/8 .1250 5/8 1-1/4 2-1/8
SC130-26009S SC130-26009M SC130-26009L 9/64 .1406 5/8 1-1/4 2-1/8
SC130-26010S SC130-26010M SC130-26010L 5/32 .1562 5/8 1-1/4 2-1/8
SC130-26011S SC130-26011M SC130-26011L 11/64 .1719 5/8 1-1/4 2-1/8
SC130-26012S SC130-26012M SC130-26012L 3/16 .1875 5/8 1-1/4 2-1/8
SC130-26013S SC130-26013M SC130-26013L 13/64 .2031 5/8 1-1/4 2-1/8
SC130-26014S SC130-26014M SC130-26014L 7/32 .2188 5/8 1-1/4 2-1/8
SC130-26015S SC130-26015M SC130-26015L 15/64 .2344 5/8 1-1/4 2-1/8
SC130-26016S SC130-26016M SC130-26016L 1/4 .2500 5/8 1-1/4 2-1/8
SC130-26017S SC130-26017M SC130-26017L 17/64 .2656 5/8 1-1/4 2-1/8
SC130-26018S SC130-26018M SC130-26018L 9/32 .2812 5/8 1-1/4 2-1/8
SC130-26019S SC130-26019M SC130-26019L 19/64 .2969 5/8 1-1/4 2-1/8
SC130-26020S SC130-26020M SC130-26020L 5/16 .3125 5/8 1-1/4 2-1/8
SC130-26021S SC130-26021M SC130-26021L 21/64 .3281 5/8 1-1/4 2-1/8
SC130-26022S SC130-26022M SC130-26022L 11/32 .3438 5/8 1-1/4 2-1/8
SC130-26023S SC130-26023M SC130-26023L 23/64 .3594 5/8 1-1/4 2-1/8
SC130-26024S SC130-26024M SC130-26024L 3/8 .3750 5/8 1-1/4 2-1/8
SC130-26025S SC130-26025M SC130-26025L 25/64 .3906 3/4 1-1/4 2-1/8
SC130-26026S SC130-26026M SC130-26026L 13/32 .4062 3/4 1-1/4 2-1/8
SC130-26027S SC130-26027M SC130-26027L 27/64 .4219 3/4 1-1/4 2-1/8
SC130-26028S SC130-26028M SC130-26028L 7/16 .4375 3/4 1-1/4 2-1/8
SC130-26029S SC130-26029M SC130-26029L 29/64 .4531 3/4 1-1/4 2-1/8
SC130-26030S SC130-26030M SC130-26030L 15/32 .4688 3/4 1-1/4 2-1/8
SC130-26031S SC130-26031M SC130-26031L 31/64 .4844 3/4 1-1/4 2-1/8
SC130-26032S SC130-26032M SC130-26032L 1/2 .5000 3/4 1-1/4 2-1/8
3/4 1-1/4
