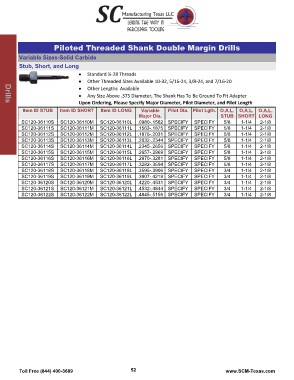

Page 54 - SCMT 2015 FULL Catalog

Drills

Piloted Threaded Shank Double Margin Drills

Variable Sizes-Solid Carbide
Stub, Short, and Long

Drills

Item ID STUB Item ID SHORT Item ID LONG Variable Pilot Dia. Pilot Lgth. O.A.L. O.A.L. O.A.L.
Major Dia. STUB SHORT LONG
SC120-36110S SC120-36110M SC120-36110L .0980-.1562 SPECIFY SPECIFY 2-1/8
SC120-36111S SC120-36111M SC120-36111L .1563-.1875 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36112S SC120-36112M SC120-36112L .1876-.2031 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36113S SC120-36113M SC120-36113L .2032-.2344 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36114S SC120-36114M SC120-36114L .2345-.2656 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36115S SC120-36115M SC120-36115L .2657-.2969 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36116S SC120-36116M SC120-36116L .2970-.3281 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36117S SC120-36117M SC120-36117L .3282-.3594 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36118S SC120-36118M SC120-36118L .3595-.3906 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-36119S SC120-36119M SC120-36119L .3907-.4219 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-36120S SC120-36120M SC120-36120L .4220-.4531 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-36121S SC120-36121M SC120-36121L .4532-.4844 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-36122S SC120-36122M SC120-36122L .4845-.5156 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
3/4 1-1/4
