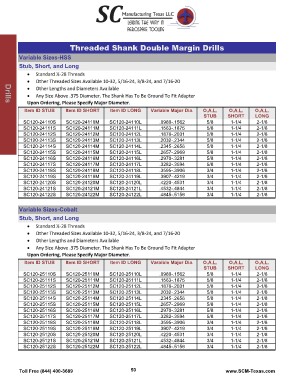

Page 52 - SCMT 2015 FULL Catalog
P. 52
Drills
Threaded Shank Double Margin Drills
Variable Sizes-HSS
Stub, Short, and Long
Drills
Item ID STUB Item ID SHORT Item ID LONG Variable Major Dia. O.A.L. O.A.L. O.A.L.
STUB SHORT LONG
SC120-24110S SC120-24110M SC120-24110L .0980-.1562 2-1/8
SC120-24111S SC120-24111M SC120-24111L .1563-.1875 5/8 1-1/4 2-1/8
SC120-24112S SC120-24112M SC120-24112L .1876-.2031 5/8 1-1/4 2-1/8
SC120-24113S SC120-24113M SC120-24113L .2032-.2344 5/8 1-1/4 2-1/8
SC120-24114S SC120-24114M SC120-24114L .2345-.2656 5/8 1-1/4 2-1/8
SC120-24115S SC120-24115M SC120-24115L .2657-.2969 5/8 1-1/4 2-1/8
SC120-24116S SC120-24116M SC120-24116L .2970-.3281 5/8 1-1/4 2-1/8
SC120-24117S SC120-24117M SC120-24117L .3282-.3594 5/8 1-1/4 2-1/8
SC120-24118S SC120-24118M SC120-24118L .3595-.3906 5/8 1-1/4 2-1/8
SC120-24119S SC120-24119M SC120-24119L .3907-.4219 3/4 1-1/4 2-1/8
SC120-24120S SC120-24120M SC120-24120L .4220-.4531 3/4 1-1/4 2-1/8
SC120-24121S SC120-24121M SC120-24121L .4532-.4844 3/4 1-1/4 2-1/8
SC120-24122S SC120-24122M SC120-24122L .4845-.5156 3/4 1-1/4 2-1/8
3/4 1-1/4
Variable Sizes-Cobalt
Stub, Short, and Long
Item ID STUB Item ID SHORT Item ID LONG Varaible Major Dia. O.A.L. O.A.L. O.A.L.
STUB SHORT LONG
SC120-25110S SC120-25110M SC120-25110L .0980-.1562 2-1/8
SC120-25111S SC120-25111M SC120-25111L .1563-.1875 5/8 1-1/4 2-1/8
SC120-25112S SC120-25112M SC120-25112L .1876-.2031 5/8 1-1/4 2-1/8
SC120-25113S SC120-25113M SC120-25113L .2032-.2344 5/8 1-1/4 2-1/8
SC120-25114S SC120-25114M SC120-25114L .2345-.2656 5/8 1-1/4 2-1/8
SC120-25115S SC120-25115M SC120-25115L .2657-.2969 5/8 1-1/4 2-1/8
SC120-25116S SC120-25116M SC120-25116L .2970-.3281 5/8 1-1/4 2-1/8
SC120-25117S SC120-25117M SC120-25117L .3282-.3594 5/8 1-1/4 2-1/8
SC120-25118S SC120-25118M SC120-25118L .3595-.3906 5/8 1-1/4 2-1/8
SC120-25119S SC120-25119M SC120-25119L .3907-.4219 3/4 1-1/4 2-1/8
SC120-25120S SC120-25120M SC120-25120L .4220-.4531 3/4 1-1/4 2-1/8
SC120-25121S SC120-25121M SC120-25121L .4532-.4844 3/4 1-1/4 2-1/8
SC120-25122S SC120-25122M SC120-25122L .4845-.5156 3/4 1-1/4 2-1/8
3/4 1-1/4
