P. 53
Drills

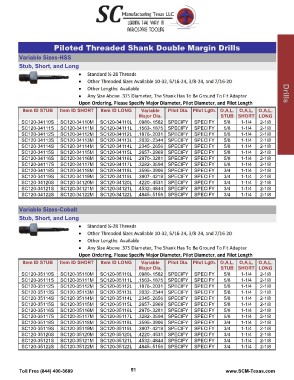

Piloted Threaded Shank Double Margin Drills
Variable Sizes-HSS
Stub, Short, and Long
Drills
Item ID STUB Item ID SHORT Item ID LONG Variable Pilot Dia. Pilot Lgth. O.A.L. O.A.L. O.A.L.
Major Dia. STUB SHORT LONG
SC120-34110S SC120-34110M SC120-34110L .0980-.1562 SPECIFY SPECIFY 2-1/8
SC120-34111S SC120-34111M SC120-34111L .1563-.1875 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34112S SC120-34112M SC120-34112L .1876-.2031 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34113S SC120-34113M SC120-34113L .2032-.2344 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34114S SC120-34114M SC120-34114L .2345-.2656 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34115S SC120-34115M SC120-34115L .2657-.2969 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34116S SC120-34116M SC120-34116L .2970-.3281 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34117S SC120-34117M SC120-34117L .3282-.3594 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34118S SC120-34118M SC120-34118L .3595-.3906 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-34119S SC120-34119M SC120-34119L .3907-.4219 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-34120S SC120-34120M SC120-34120L .4220-.4531 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-34121S SC120-34121M SC120-34121L .4532-.4844 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-34122S SC120-34122M SC120-34122L .4845-.5156 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
3/4 1-1/4
Variable Sizes-Cobalt
Stub, Short, and Long
Item ID STUB Item ID SHORT Item ID LONG Variable Pilot Dia. Pilot Lgth. O.A.L. O.A.L. O.A.L.
Major Dia. STUB SHORT LONG
SC120-35110S SC120-35110M SC120-35110L .0980-.1562 SPECIFY SPECIFY 2-1/8
SC120-35111S SC120-35111M SC120-35111L .1563-.1875 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35112S SC120-35112M SC120-35112L .1876-.2031 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35113S SC120-35113M SC120-35113L .2032-.2344 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35114S SC120-35114M SC120-35114L .2345-.2656 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35115S SC120-35115M SC120-35115L .2657-.2969 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35116S SC120-35116M SC120-35116L .2970-.3281 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35117S SC120-35117M SC120-35117L .3282-.3594 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35118S SC120-35118M SC120-35118L .3595-.3906 SPECIFY SPECIFY 5/8 1-1/4 2-1/8
SC120-35119S SC120-35119M SC120-35119L .3907-.4219 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-35120S SC120-35120M SC120-35120L .4220-.4531 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-35121S SC120-35121M SC120-35121L .4532-.4844 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
SC120-35122S SC120-35122M SC120-35122L .4845-.5156 SPECIFY SPECIFY 3/4 1-1/4 2-1/8
3/4 1-1/4
