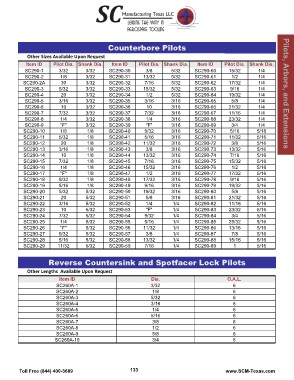

Pilots, Arbors, and Extensions Pilots, Arbors, and Extensions
Counterbore Pilots

Item ID Pilot Dia. Shank Dia. Item ID Pilot Dia. Shank Dia. Item ID Pilot Dia. Shank Dia.

SC290-1 3/32 3/32 SC290-30 3/8 5/32 SC290-60 15/32 1/4
SC290-2 1/8 3/32 SC290-31 13/32 5/32 SC290-61 1/2 1/4
SC290-2A 30 3/32 SC290-32 7/16 5/32 SC290-62 1/4
SC290-3 5/32 3/32 SC290-33 15/32 5/32 SC290-63 17/32 1/4
SC290-4 20 3/32 SC290-34 5/32 SC290-64 9/16 1/4
SC290-5 3/16 3/32 SC290-35 1/2 3/16 SC290-65 19/32 1/4
SC290-6 10 3/32 SC290-36 3/16 3/16 SC290-66 5/8 1/4
SC290-7 7/32 3/32 SC290-37 10 3/16 SC290-67 21/32 1/4
SC290-8 1/4 3/32 SC290-38 7/32 3/16 SC290-68 11/16 1/4
SC290-9 "F" 3/32 SC290-39 1/4 3/16 SC290-69 23/32 1/4
SC290-10 1/8 1/8 SC290-40 "F" 3/16 SC290-70 3/4 5/16
SC290-11 5/32 1/8 SC290-41 9/32 3/16 SC290-71 5/16 5/16
SC290-12 20 1/8 SC290-42 5/16 3/16 SC290-72 11/32 5/16
SC290-13 3/16 1/8 SC290-43 11/32 3/16 SC290-73 3/8 5/16
SC290-14 10 1/8 SC290-44 3/8 3/16 SC290-74 13/32 5/16
SC290-15 7/32 1/8 SC290-45 13/32 3/16 SC290-75 7/16 5/16
SC290-16 1/4 1/8 SC290-46 7/16 3/16 SC290-76 15/32 5/16
SC290-17 "F" 1/8 SC290-47 15/32 3/16 SC290-77 1/2 5/16
SC290-18 9/32 1/8 SC290-48 1/2 3/16 SC290-78 17/32 5/16
SC290-19 5/16 1/8 SC290-49 17/32 3/16 SC290-79 9/16 5/16
SC290-20 5/32 5/32 SC290-50 9/16 3/16 SC290-80 19/32 5/16
SC290-21 20 5/32 SC290-51 19/32 3/16 SC290-81 5/8 5/16
SC290-22 3/16 5/32 SC290-52 5/8 1/4 SC290-82 21/32 5/16
SC290-23 10 5/32 SC290-53 1/4 1/4 SC290-83 11/16 5/16
SC290-24 7/32 5/32 SC290-54 "F" 1/4 SC290-84 23/32 5/16
SC290-25 1/4 5/32 SC290-55 9/32 1/4 SC290-85 3/4 5/16
SC290-26 "F" 5/32 SC290-56 5/16 1/4 SC290-86 25/32 5/16
SC290-27 9/32 5/32 SC290-57 11/32 1/4 SC290-87 13/16 5/16
SC290-28 5/16 5/32 SC290-58 3/8 1/4 SC290-88 7/8 5/16
SC290-29 11/32 5/32 SC290-59 13/32 1/4 SC290-89 15/16 5/16
7/16
1

Reverse Countersink and Spotfacer Lock Pilots

Item ID Dia. O.A.L.

SC260A-1 3/32 6
SC260A-2 1/8 6
SC260A-3 5/32 6
SC260A-4 3/16 6
SC260A-5 1/4 6
SC260A-6 5/16 6
SC260A-7 3/8 6
SC260A-8 1/2 6
SC260A-9 5/8 6
SC260A-10 3/4 6
