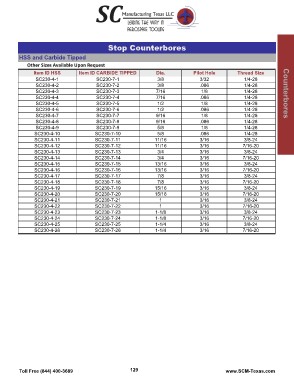

Page 131 - SCMT 2015 FULL Catalog

Counterbores Stop Counterbores

HSS and Carbide Tipped

Item ID HSS Item ID CARBIDE TIPPED Dia. Pilot Hole Thread Size Counterbores

SC230-4-1 SC230-7-1 3/8 3/32 1/4-28
SC230-4-2 SC230-7-2 3/8 .086 1/4-28
SC230-4-3 SC230-7-3 7/16 1/8 1/4-28
SC230-4-4 SC230-7-4 7/16 .086 1/4-28
SC230-4-5 SC230-7-5 1/2 1/8 1/4-28
SC230-4-6 SC230-7-6 1/2 .086 1/4-28
SC230-4-7 SC230-7-7 9/16 1/8 1/4-28
SC230-4-8 SC230-7-8 9/16 .086 1/4-28
SC230-4-9 SC230-7-9 5/8 1/8 1/4-28
SC230-4-10 SC230-7-10 5/8 .086 1/4-28
SC230-4-11 SC230-7-11 11/16 3/16 3/8-24
SC230-4-12 SC230-7-12 11/16 3/16 7/16-20
SC230-4-13 SC230-7-13 3/4 3/16 3/8-24
SC230-4-14 SC230-7-14 3/4 3/16 7/16-20
SC230-4-15 SC230-7-15 13/16 3/16 3/8-24
SC230-4-16 SC230-7-16 13/16 3/16 7/16-20
SC230-4-17 SC230-7-17 7/8 3/16 3/8-24
SC230-4-18 SC230-7-18 7/8 3/16 7/16-20
SC230-4-19 SC230-7-19 15/16 3/16 3/8-24
SC230-4-20 SC230-7-20 15/16 3/16 7/16-20
SC230-4-21 SC230-7-21 1 3/16 3/8-24
SC230-4-22 SC230-7-22 1 3/16 7/16-20
SC230-4-23 SC230-7-23 1-1/8 3/16 3/8-24
SC230-4-24 SC230-7-24 1-1/8 3/16 7/16-20
SC230-4-25 SC230-7-25 1-1/4 3/16 3/8-24
SC230-4-26 SC230-7-26 1-1/4 3/16 7/16-20
