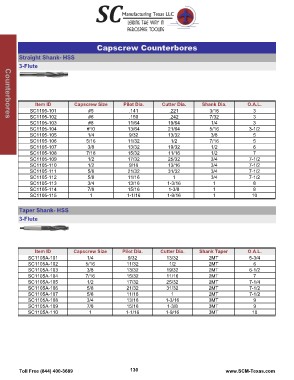

Page 132 - SCMT 2015 FULL Catalog

Counterbores Capscrew Counterbores

Counterbores Straight Shank- HSS
3-Flute

Item ID Capscrew Size Pilot Dia. Cutter Dia. Shank Dia. O.A.L.

SC1105-101 #5 .141 .221 3/16 3
SC1105-102 #6 .150 .242 7/32 3
SC1105-103 #8 11/64 19/64 1/4 3
SC1105-104 #10 13/64 21/64 5/16 3-1/2
SC1105-105 1/4 9/32 13/32 3/8 5
SC1105-106 5/16 11/32 1/2 7/16 5
SC1105-107 3/8 13/32 19/32 1/2 6
SC1105-108 7/16 15/32 11/16 1/2 7
SC1105-109 1/2 17/32 25/32 3/4 7-1/2
SC1105-110 1/2 9/16 13/16 3/4 7-1/2
SC1105-111 5/8 21/32 31/32 3/4 7-1/2
SC1105-112 5/8 11/16 3/4 7-1/2
SC1105-113 3/4 13/16 1 8
SC1105-114 7/8 15/16 1-3/16 1 8
SC1105-115 1 1-1/16 1-3/8 1 10
1-9/16 1

Taper Shank- HSS
3-Flute

Item ID Capscrew Size Pilot Dia. Cutter Dia. Shank Taper O.A.L.

SC1105A-101 1/4 9/32 13/32 2MT 5-3/4
SC1105A-102 5/16 11/32 1/2 2MT 6
SC1105A-103 3/8 13/32 2MT
SC1105A-104 7/16 15/32 19/32 2MT 6-1/2
SC1105A-105 1/2 17/32 11/16 2MT 7
SC1105A-106 5/8 21/32 25/32 2MT
SC1105A-107 5/8 11/16 31/32 2MT 7-1/4
SC1105A-108 3/4 13/16 3MT 7-1/2
SC1105A-109 7/8 15/16 1 3MT 7-1/2
SC1105A-110 1-1/16 1-3/16 3MT
1 1-3/8 9
1-9/16 9
10
