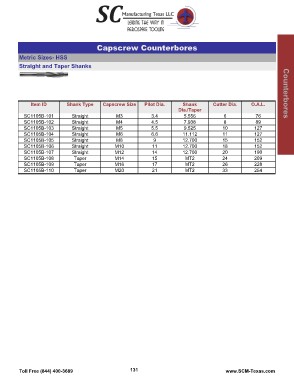

Page 133 - SCMT 2015 FULL Catalog
P. 133
Counterbores
Capscrew Counterbores
Metric Sizes- HSS Counterbores
Straight and Taper Shanks
Item ID Shank Type Capscrew Size Pilot Dia. Shank Cutter Dia. O.A.L.
Dia./Taper
SC1105B-101 Straight M3 3.4 6 76
SC1105B-102 Straight M4 4.5 5.556 8 89
SC1105B-103 Straight M5 5.5 7.938 10 127
SC1105B-104 Straight M6 6.6 9.525 11 127
SC1105B-105 Straight M8 9 11.112 15 152
SC1105B-106 Straight M10 11 12.700 18 152
SC1105B-107 Straight M12 14 12.700 20 190
SC1105B-108 Taper M14 15 12.700 24 209
SC1105B-109 Taper M16 17 MT2 26 228
SC1105B-110 Taper M20 21 MT2 33 254
MT2
