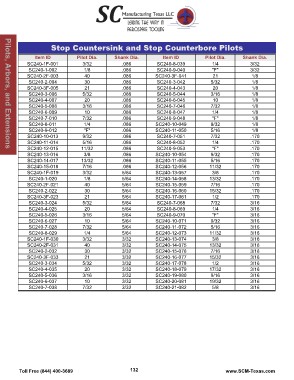

Stop Countersink and Stop Counterbore Pilots

Item ID Pilot Dia. Shank Dia. Item ID Pilot Dia. Shank Dia.

SC240-1F-001 3/32 .086 SC240-8-039 1/4 3/32
SC240-1-002 1/8 .086 SC240-9-040 "F" 3/32
SC240-2F-003 40 .086 SC240-3F-041 21 1/8
SC240-2-004 30 .086 SC240-3-042 5/32 1/8
SC240-3F-005 21 .086 SC240-4-043 20 1/8
SC240-3-006 5/32 .086 SC240-5-044 3/16 1/8
SC240-4-007 20 .086 SC240-6-045 10 1/8
SC240-5-008 3/16 .086 SC240-7-046 7/32 1/8
SC240-6-009 10 .086 SC240-8-047 1/4 1/8
SC240-7-010 7/32 .086 SC240-9-048 "F" 1/8
SC240-8-011 1/4 .086 SC240-10-049 9/32 1/8
SC240-9-012 "F" .086 SC240-11-050 5/16 1/8
SC240-10-013 9/32 .086 SC240-7-051 7/32 .170
SC240-11-014 5/16 .086 SC240-8-052 1/4 .170
SC240-12-015 11/32 .086 SC240-9-053 "F" .170
SC240-13-016 3/8 .086 SC240-10-054 9/32 .170
SC240-14-017 13/32 .086 SC240-11-055 5/16 .170
SC240-15-018 7/16 .086 SC240-12-056 11/32 .170
SC240-1F-019 3/32 5/64 SC240-13-057 3/8 .170
SC240-1-020 1/8 5/64 SC240-14-058 13/32 .170
SC240-2F-021 40 5/64 SC240-15-059 7/16 .170
SC240-2-022 30 5/64 SC240-16-060 15/32 .170
SC240-3F-023 21 5/64 SC240-17-061 1/2 .170
SC240-3-024 5/32 5/64 SC240-7-068 7/32 3/16
SC240-4-025 20 5/64 SC240-8-069 1/4 3/16
SC240-5-026 3/16 5/64 SC240-9-070 "F" 3/16
SC240-6-027 10 5/64 SC240-10-071 9/32 3/16
SC240-7-028 7/32 5/64 SC240-11-072 5/16 3/16
SC240-8-029 1/4 5/64 SC240-12-073 11/32 3/16
SC240-1F-030 3/32 3/32 SC240-13-074 3/8 3/16
SC240-2F-031 40 3/32 SC240-14-075 13/32 3/16
SC240-2-032 30 3/32 SC240-15-076 7/16 3/16
SC240-3F-033 21 3/32 SC240-16-077 15/32 3/16
SC240-3-034 5/32 3/32 SC240-17-078 1/2 3/16
SC240-4-035 20 3/32 SC240-18-079 17/32 3/16
SC240-5-036 3/16 3/32 SC240-19-080 9/16 3/16
SC240-6-037 10 3/32 SC240-20-081 19/32 3/16
SC240-7-038 7/32 3/32 SC240-21-082 5/8 3/16
