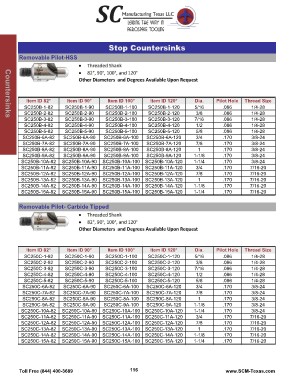

Page 118 - SCMT 2015 FULL Catalog

Countersinks Stop Countersinks

Removable Pilot-HSS

Countersinks Item ID 82° Item ID 90° Item ID 100° Item ID 120° Dia. Pilot Hole Thread Size

SC250B-1-82 SC250B-1-90 SC250B-1-100 SC250B-1-120 5/16 .086 1/4-28
SC250B-2-82 SC250B-2-90 SC250B-2-100 SC250B-2-120 3/8 .086 1/4-28
SC250B-3-82 SC250B-3-90 SC250B-3-100 SC250B-3-120 7/16 .086 1/4-28
SC250B-4-82 SC250B-4-90 SC250B-4-100 SC250B-4-120 1/2 .086 1/4-28
SC250B-5-82 SC250B-5-90 SC250B-5-100 SC250B-5-120 5/8 .086 1/4-28
SC250B-6A-82 SC250B-6A-90 SC250B-6A-100 SC250B-6A-120 3/4 .170 3/8-24
SC250B-7A-82 SC250B-7A-90 SC250B-7A-100 SC250B-7A-120 7/8 .170 3/8-24
SC250B-8A-82 SC250B-8A-90 SC250B-8A-100 SC250B-8A-120 1 .170 3/8-24
SC250B-9A-82 SC250B-9A-90 SC250B-9A-100 SC250B-9A-120 1-1/8 .170 3/8-24
SC250B-10A-82 SC250B-10A-90 SC250B-10A-100 SC250B-10A-120 1-1/4 .170 3/8-24
SC250B-11A-82 SC250B-11A-90 SC250B-11A-100 SC250B-11A-120 3/4 .170 7/16-20
SC250B-12A-82 SC250B-12A-90 SC250B-12A-100 SC250B-12A-120 7/8 .170 7/16-20
SC250B-13A-82 SC250B-13A-90 SC250B-13A-100 SC250B-13A-120 1 .170 7/16-20
SC250B-14A-82 SC250B-14A-90 SC250B-14A-100 SC250B-14A-120 1-1/8 .170 7/16-20
SC250B-15A-82 SC250B-15A-90 SC250B-15A-100 SC250B-15A-120 1-1/4 .170 7/16-20

Removable Pilot- Carbide Tipped

Item ID 82° Item ID 90° Item ID 100° Item ID 120° Dia. Pilot Hole Thread Size

SC250C-1-82 SC250C-1-90 SC250C-1-100 SC250C-1-120 5/16 .086 1/4-28
SC250C-2-82 SC250C-2-90 SC250C-2-100 SC250C-2-120 3/8 .086 1/4-28
SC250C-3-82 SC250C-3-90 SC250C-3-100 SC250C-3-120 7/16 .086 1/4-28
SC250C-4-82 SC250C-4-90 SC250C-4-100 SC250C-4-120 1/2 .086 1/4-28
SC250C-5-82 SC250C-5-90 SC250C-5-100 SC250C-5-120 5/8 .086 1/4-28
SC250C-6A-82 SC250C-6A-90 SC250C-6A-100 SC250C-6A-120 3/4 .170 3/8-24
SC250C-7A-82 SC250C-7A-90 SC250C-7A-100 SC250C-7A-120 7/8 .170 3/8-24
SC250C-8A-82 SC250C-8A-90 SC250C-8A-100 SC250C-8A-120 1 .170 3/8-24
SC250C-9A-82 SC250C-9A-90 SC250C-9A-100 SC250C-9A-120 1-1/8 .170 3/8-24
SC250C-10A-82 SC250C-10A-90 SC250C-10A-100 SC250C-10A-120 1-1/4 .170 3/8-24
SC250C-11A-82 SC250C-11A-90 SC250C-11A-100 SC250C-11A-120 3/4 .170 7/16-20
SC250C-12A-82 SC250C-12A-90 SC250C-12A-100 SC250C-12A-120 7/8 .170 7/16-20
SC250C-13A-82 SC250C-13A-90 SC250C-13A-100 SC250C-13A-120 1 .170 7/16-20
SC250C-14A-82 SC250C-14A-90 SC250C-14A-100 SC250C-14A-120 1-1/8 .170 7/16-20
SC250C-15A-82 SC250C-15A-90 SC250C-15A-100 SC250C-15A-120 1-1/4 .170 7/16-20

Toll Free (844) 400-3689 116 www.SCM-Texas.com
