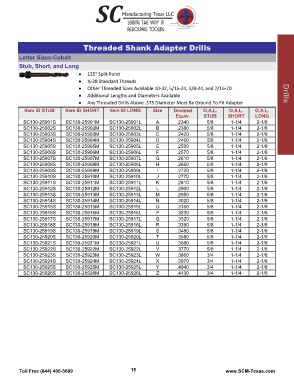

Page 17 - SCMT 2015 FULL Catalog

Drills

Threaded Shank Adapter Drills

Letter Sizes-Cobalt
Stub, Short, and Long

Drills

Item ID STUB Item ID SHORT Item ID LONG Size Decimal O.A.L. O.A.L. O.A.L.
Equiv. STUB SHORT LONG
SC130-25901S SC130-25901M SC130-25901L A .2340 2-1/8
SC130-25902S SC130-25902M SC130-25902L B .2380 5/8 1-1/4 2-1/8
SC130-25903S SC130-25903M SC130-25903L C .2420 5/8 1-1/4 2-1/8
SC130-25904S SC130-25904M SC130-25904L D .2460 5/8 1-1/4 2-1/8
SC130-25905S SC130-25905M SC130-25905L E .2500 5/8 1-1/4 2-1/8
SC130-25906S SC130-25906M SC130-25906L F .2570 5/8 1-1/4 2-1/8
SC130-25907S SC130-25907M SC130-25907L G .2610 5/8 1-1/4 2-1/8
SC130-25908S SC130-25908M SC130-25908L H .2660 5/8 1-1/4 2-1/8
SC130-25909S SC130-25909M SC130-25909L I .2720 5/8 1-1/4 2-1/8
SC130-25910S SC130-25910M SC130-25910L J .2770 5/8 1-1/4 2-1/8
SC130-25911S SC130-25911M SC130-25911L K .2810 5/8 1-1/4 2-1/8
SC130-25912S SC130-25912M SC130-25912L L .2900 5/8 1-1/4 2-1/8
SC130-25913S SC130-25913M SC130-25913L M .2950 5/8 1-1/4 2-1/8
SC130-25914S SC130-25914M SC130-25914L N .3020 5/8 1-1/4 2-1/8
SC130-25915S SC130-25915M SC130-25915L O .3160 5/8 1-1/4 2-1/8
SC130-25916S SC130-25916M SC130-25916L P .3230 5/8 1-1/4 2-1/8
SC130-25917S SC130-25917M SC130-25917L Q .3320 5/8 1-1/4 2-1/8
SC130-25918S SC130-25918M SC130-25918L R .3390 5/8 1-1/4 2-1/8
SC130-25919S SC130-25919M SC130-25919L S .3480 5/8 1-1/4 2-1/8
SC130-25920S SC130-25920M SC130-25920L T .3580 5/8 1-1/4 2-1/8
SC130-25921S SC130-25921M SC130-25921L U .3680 5/8 1-1/4 2-1/8
SC130-25922S SC130-25922M SC130-25922L V .3770 5/8 1-1/4 2-1/8
SC130-25923S SC130-25923M SC130-25923L W .3860 5/8 1-1/4 2-1/8
SC130-25924S SC130-25924M SC130-25924L X .3970 3/4 1-1/4 2-1/8
SC130-25925S SC130-25925M SC130-25925L Y .4040 3/4 1-1/4 2-1/8
SC130-25926S SC130-25926M SC130-25926L Z .4130 3/4 1-1/4 2-1/8
3/4 1-1/4
